Section 9 (Automatic Transmission - VT40 (MRG) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Automatic Transmission Controls Wiring Schematics
>>

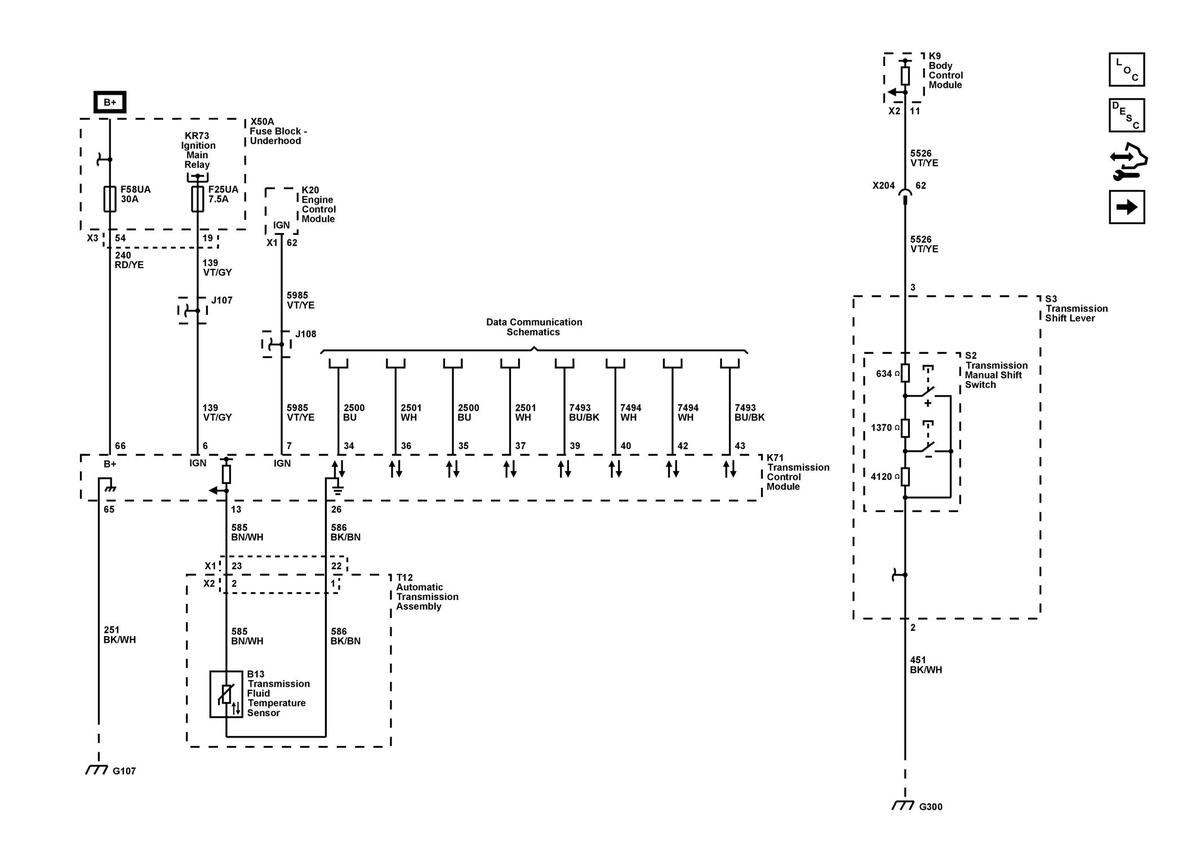

Power, Ground, Serial Data, and Fluid Temperature (MRG)
Power, Ground, Serial Data, and Fluid Temperature (MRG)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
