Intake Air Baffle Replacement

WARNING: This page is about a different variant/trim than selected.

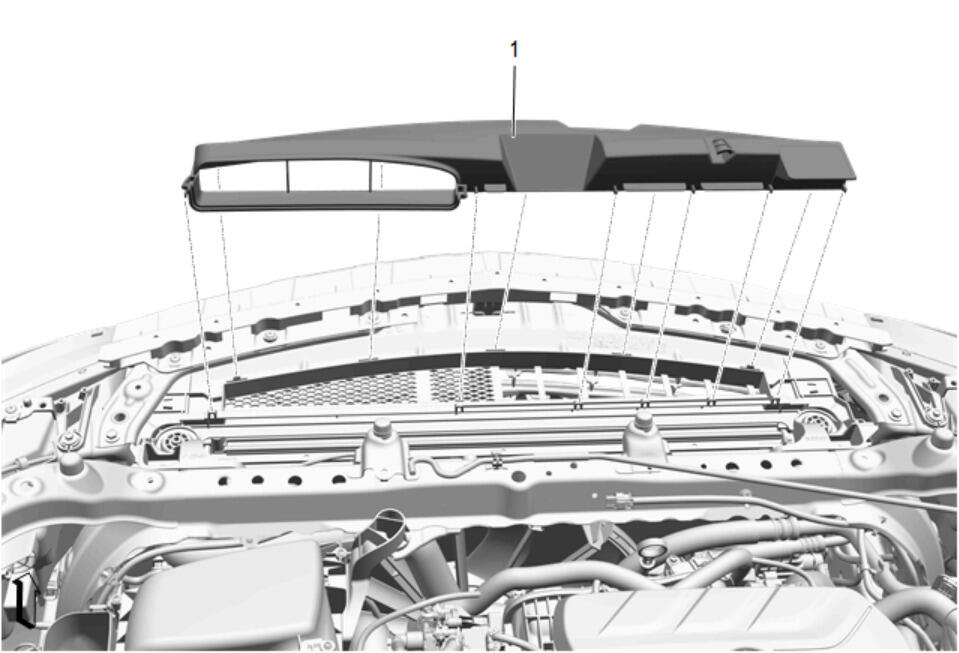

GM5209012Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Bumper Fascia Replacement
  2. Intake Air Duct Replacement
  3. Hood Primary and Secondary Latch Replacement
1 Intake Air Baffle
Procedure
Release the retainer tabs and remove the intake air baffle from the radiator air upper baffle.
