Removal Procedure

WARNING: This page is about a different variant/trim than selected.

WARNING:

WARNING:

Battery Tray - Remove - Battery Tray Replacement
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @ Electronic Brake Control Module (2) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Cap the brake pipe fittings to prevent brake fluid loss and contamination.

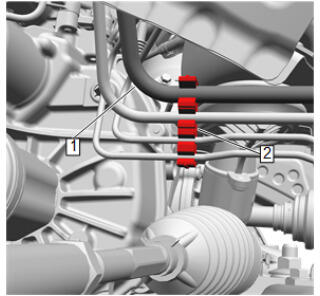

Brake Pipe Fitting (1) @ Brake Pressure Modulator Valve - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

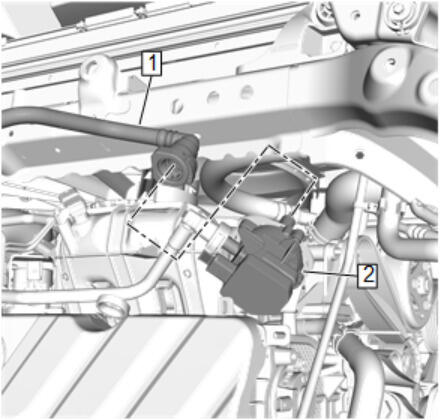

Evaporative Emission Pipe-Underbody (1) @ Evaporative Emission Canister Purge Pump (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

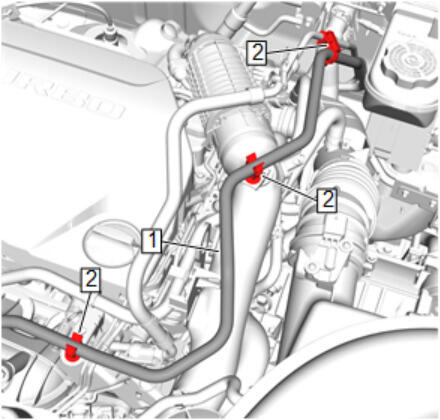

Evaporative Emission Pipe-Underbody (1) @ Retainer (2) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

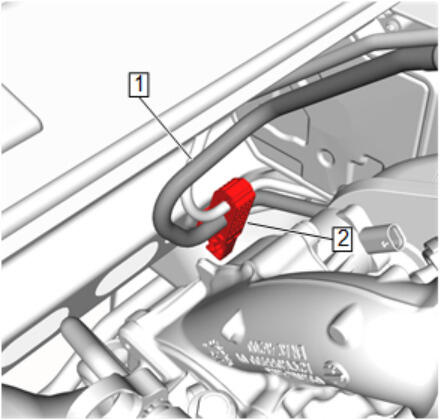

Evaporative Emission Pipe-Underbody (1) @ Retainer (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

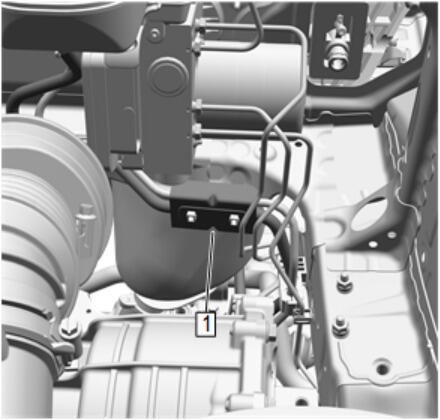

Fuel Feed Front Pipe Shield (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

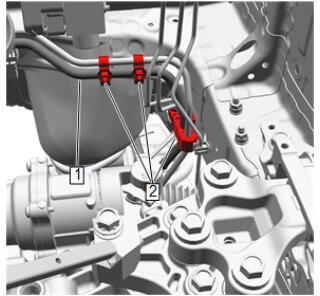

Evaporative Emission Pipe-Underbody (1) @ Retainer (2) - Remove [3x]
Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the left front tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Evaporative Emission Pipe-Underbody (1) @ Retainer (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

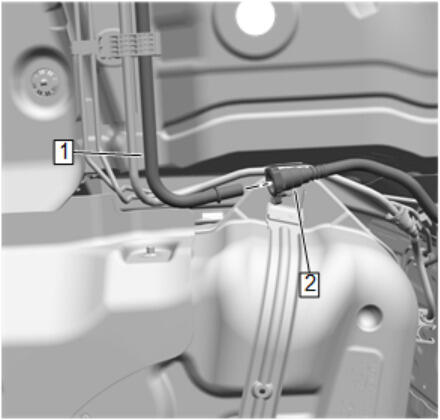

Evaporative Emission Pipe-Underbody (1) @ Evaporative Emission Pipe-Fuel Tank (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

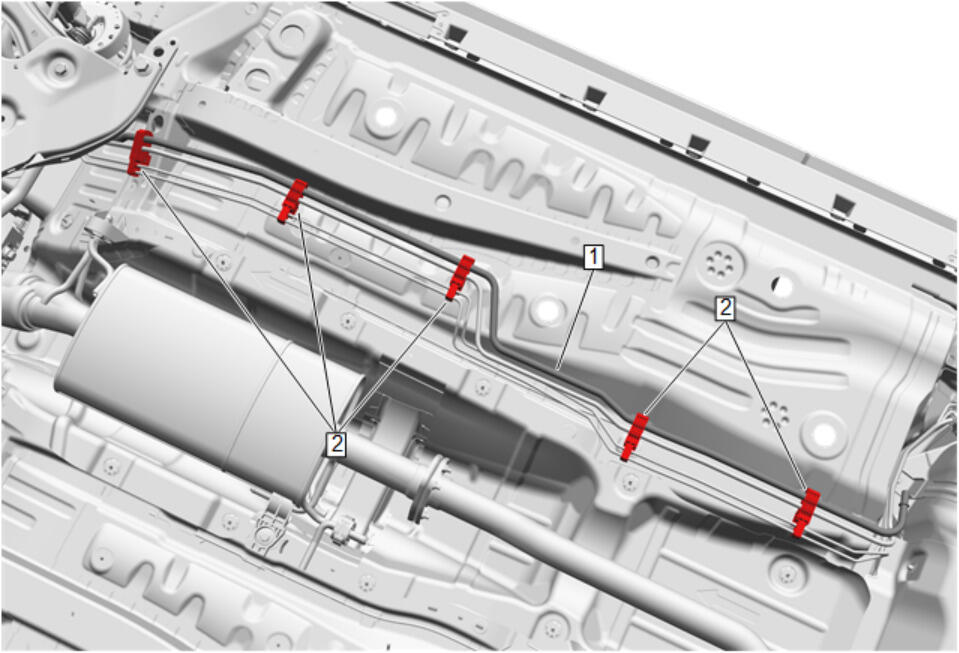

Evaporative Emission Pipe-Underbody (1) @ Retainer (2) - Remove [5x]
Evaporative Emission Pipe-Underbody (1) @ Vehicle - Remove
