Removal Procedure

WARNING: This page is about a different variant/trim than selected.
WARNING:

Diesel/Gasoline Vapors Warning

WARNING:

Safety Glasses Warning

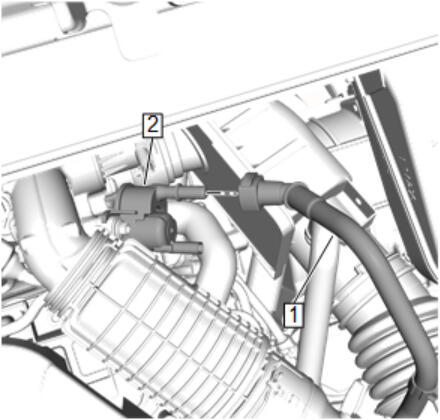

  1. GM5390624Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Tube (1) @ Evaporative Emission Canister Purge Solenoid Valve (2) - Disconnect - Plastic Collar Quick Connect Fitting Service

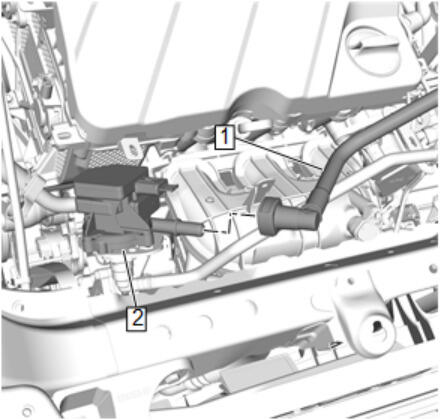

  2. GM5390625Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Tube (1) @ Evaporative Emission Canister Purge Pump (2) - Disconnect - Plastic Collar Quick Connect Fitting Service

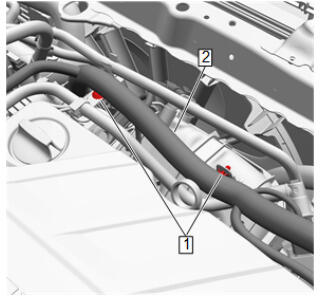

  3. GM5442643Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Release [2x]

  4. Engine Wiring Harness (2) - Position aside

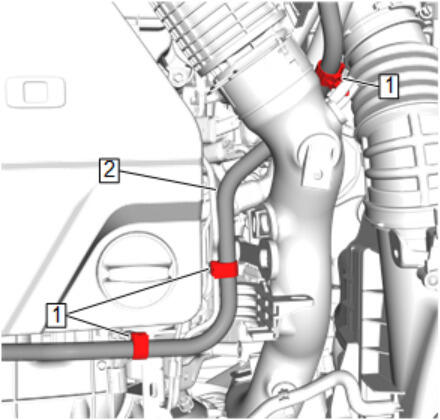

  5. GM5390627Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Tube Clip (1) - Remove [3x]

  6. Evaporative Emission Canister Purge Tube (2) @ Vehicle - Remove
