Section 7 (Engine Controls And Fuel - 1.2L (LIH) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>

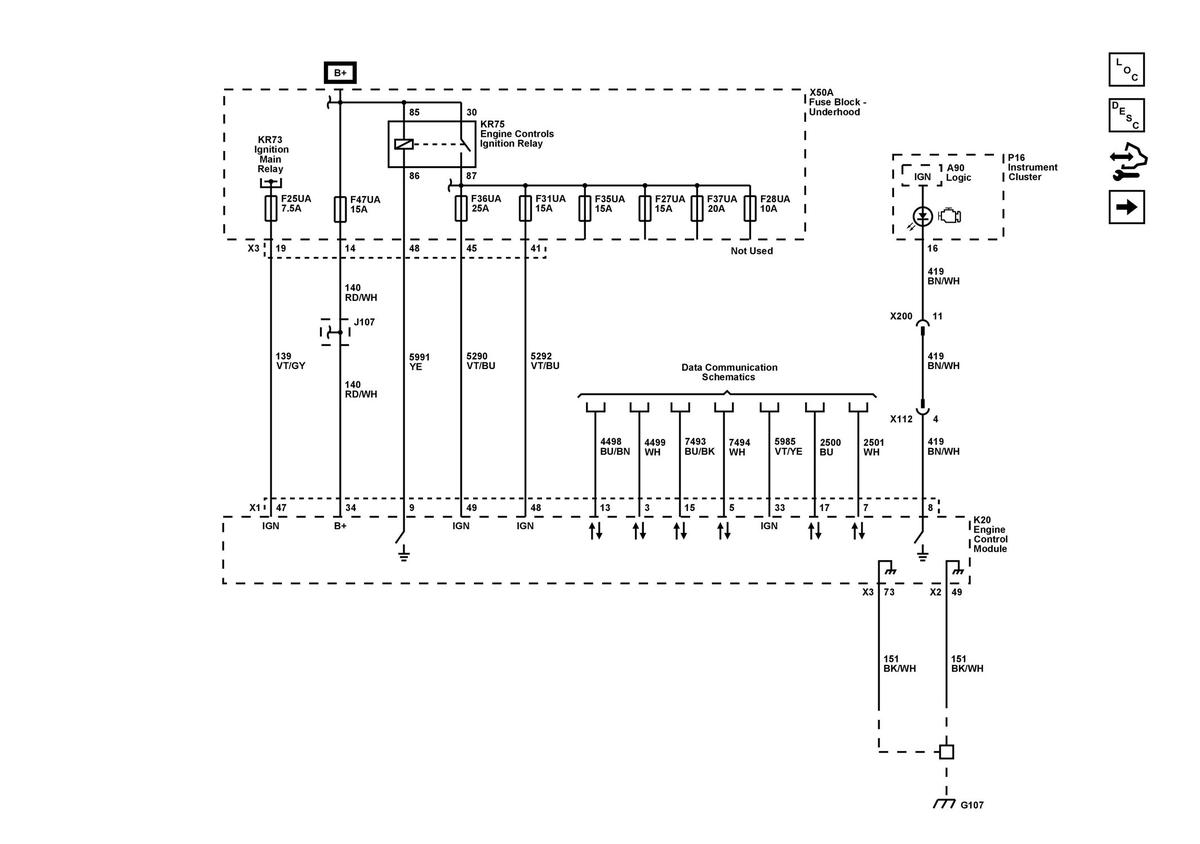

Module Power, Ground, Serial Data, and MIL
Module Power, Ground, Serial Data, and MIL
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
