Section 7 (Engine Controls And Fuel - 1.2L (LIH) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>

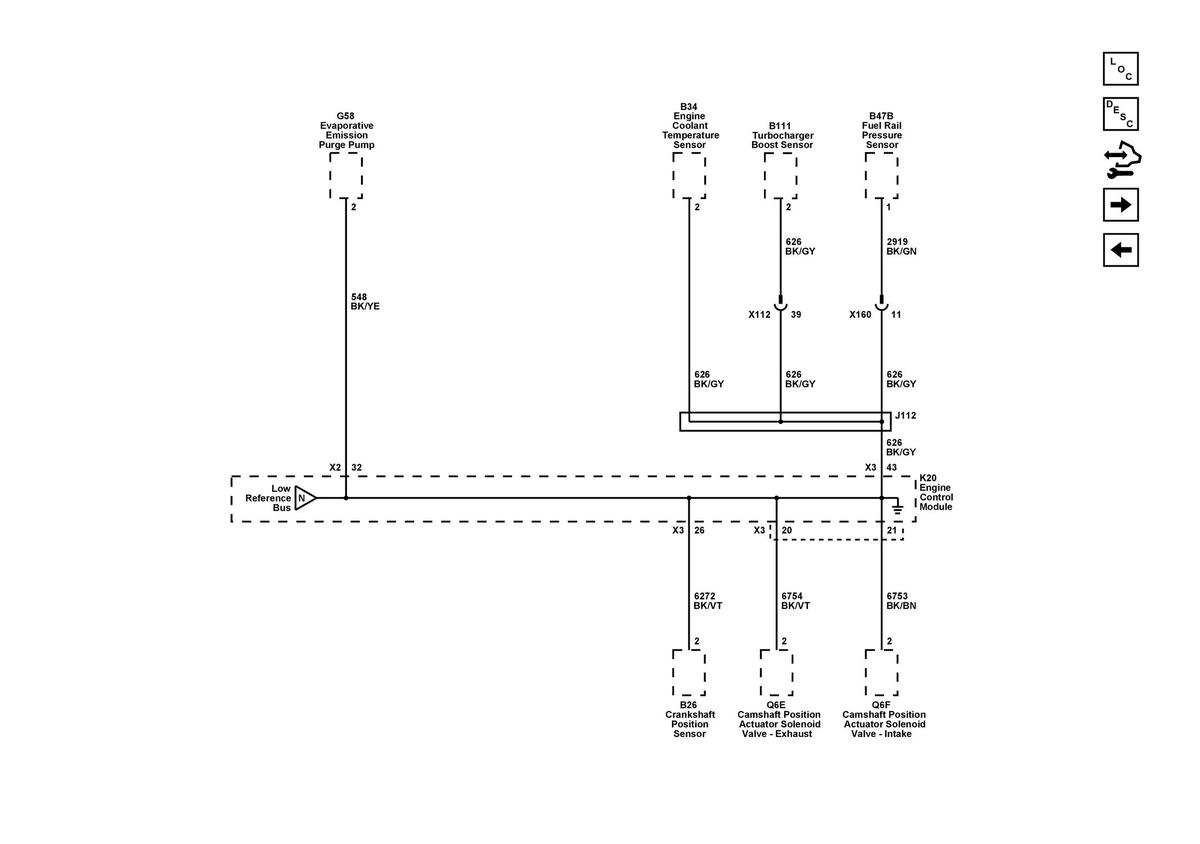

Low Reference Bus (2 of 2)
Low Reference Bus (2 of 2)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
