Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch to the On position, engine Off.
- Apply the parking brake.
- Place the transmission control in the Neutral position.
- Turn the ignition switch to the Off position.

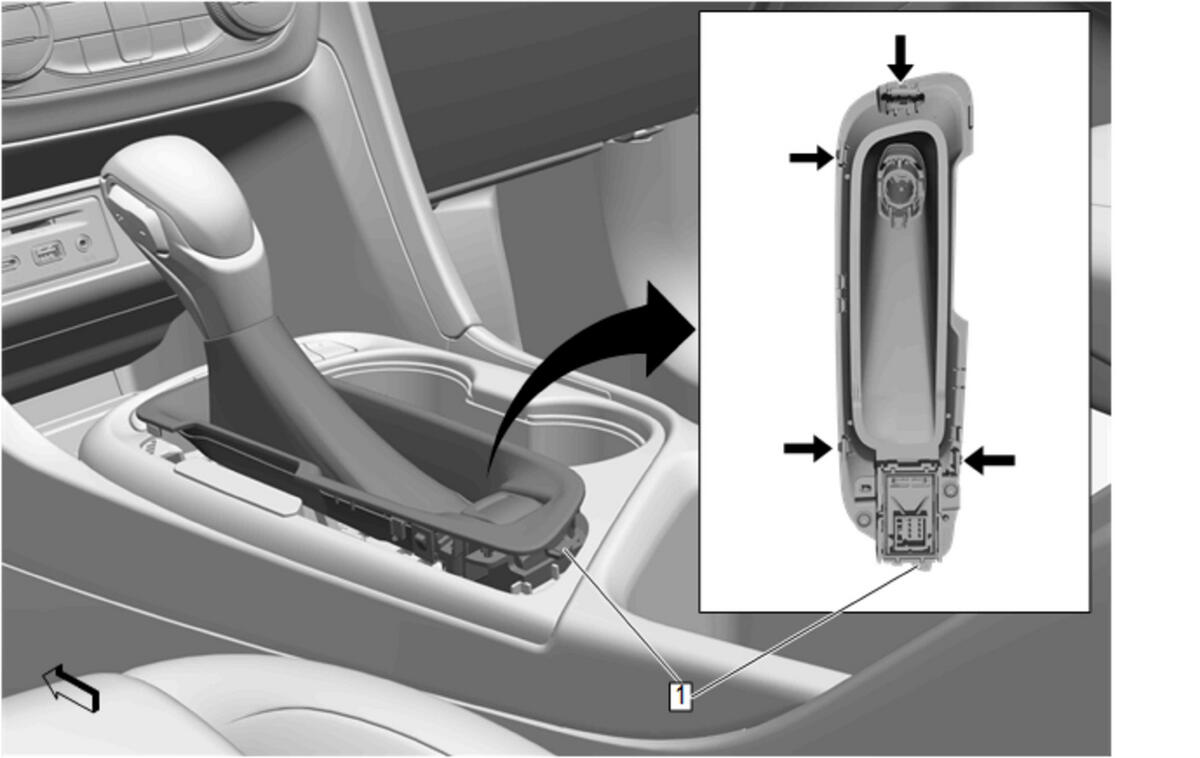

Using a trim tool, release the retainers (arrows) from the front floor console.
- Release the rear locating tab (1) from the front floor console.
- Pull the transmission control lever boot bezel up to gain access to the electrical connector.

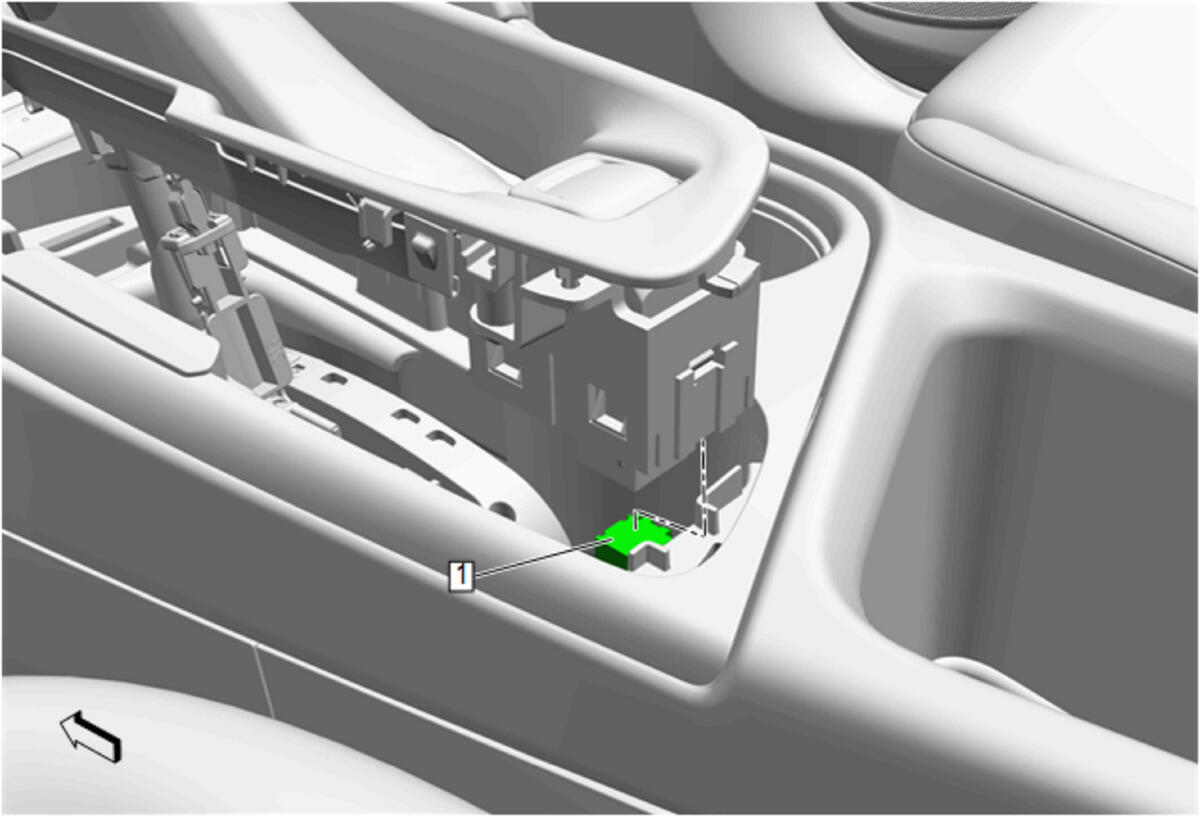

Electrical Connector (1) - Disconnect

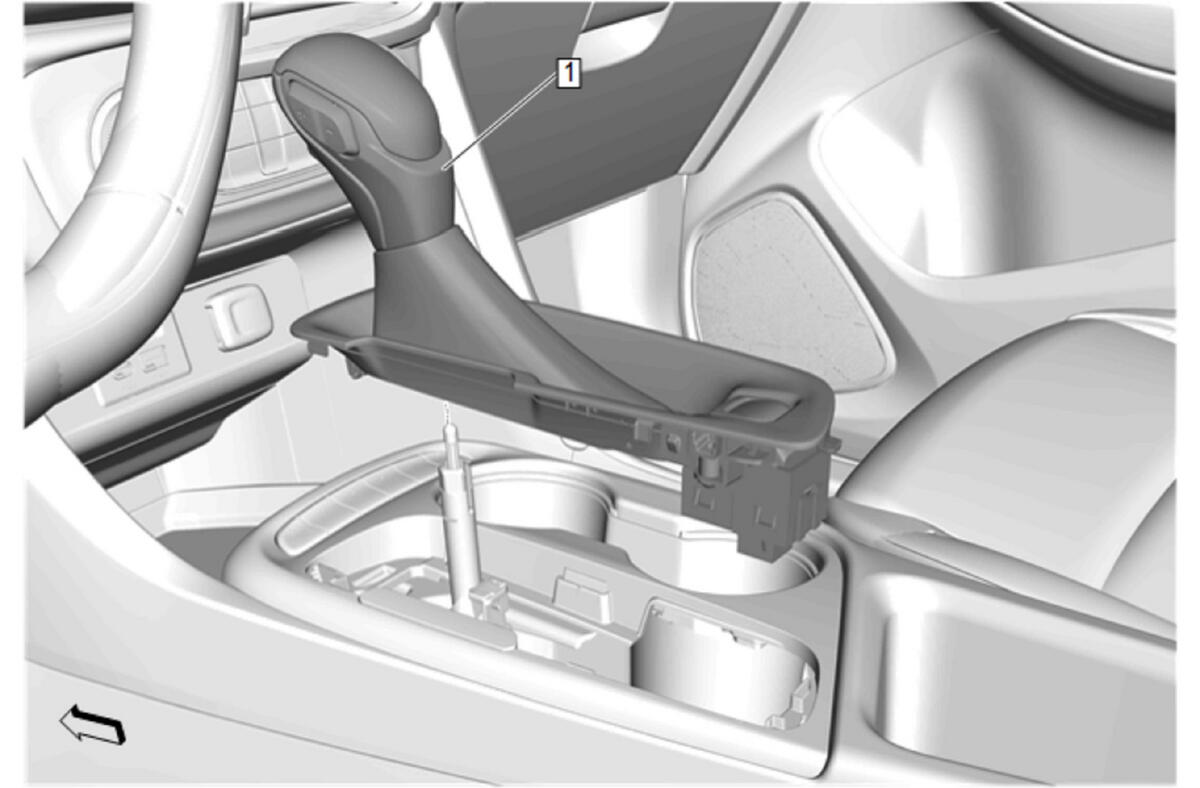

With a firm grip on the transmission control lever knob (1), slightly twist the transmission control lever knob side to side, then firmly pull up on the transmission control lever knob. This will unseat the locking circlip.
- Transmission Control Lever Knob (1) @ Transmission Control Lever - Remove
