Turbocharger Wastegate Closed

WARNING: This page is about a different variant/trim than selected.

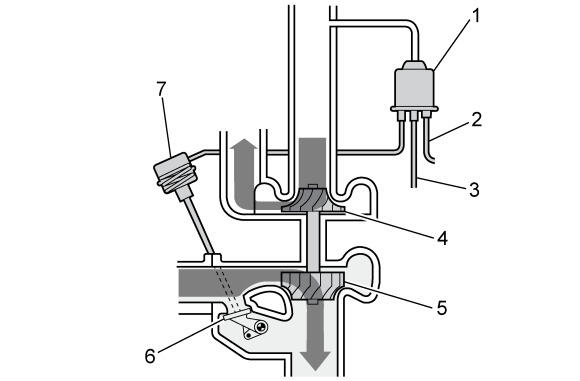

GM5877765Courtesy of GENERAL MOTORS COMPANY
  1. Q42 Turbocharger Wastegate Solenoid Valve = Duty Cycle 95 to 100 percent (full boost)
  2. Q42 -Wiring Harness
  3. Vacuum Source from the Engine Mounted Mechanical Pump
  4. Turbocharger Compressor
  5. Turbocharger Turbine
  6. Turbocharger Wastegate Valve
  7. Turbocharger Wastegate Valve Actuator
