Front Floor Console Cup Holder Trim Plate Replacement

Courtesy of GENERAL MOTORS COMPANY

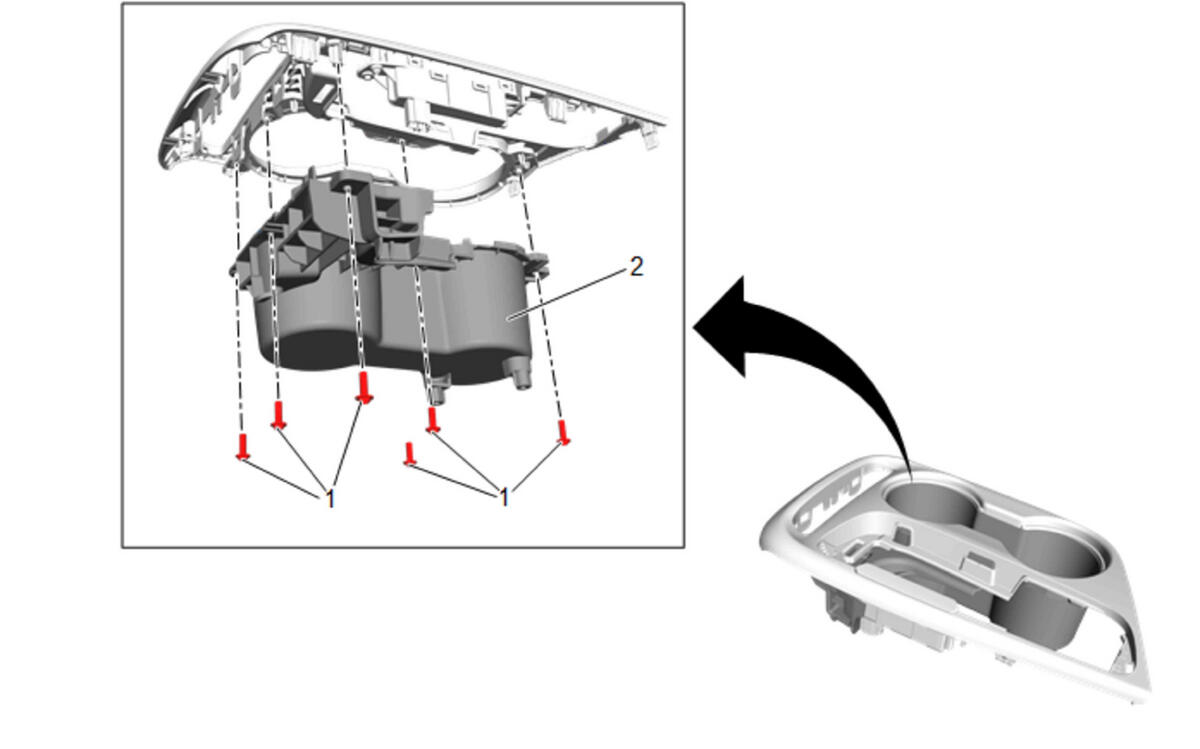

Callout	Component Name
Preliminary Procedure  Front Floor Console Accessory Switch Mount Plate Replacement
1	Front Floor Console Cup Holder Bolt [6x] CAUTION: Fastener Caution Tighten  0.85 N.m (8 lb in)
2	Front Floor Console Cup Holder Trim Plate
