Sunroof Sunshade Motor Replacement

Courtesy of GENERAL MOTORS COMPANY

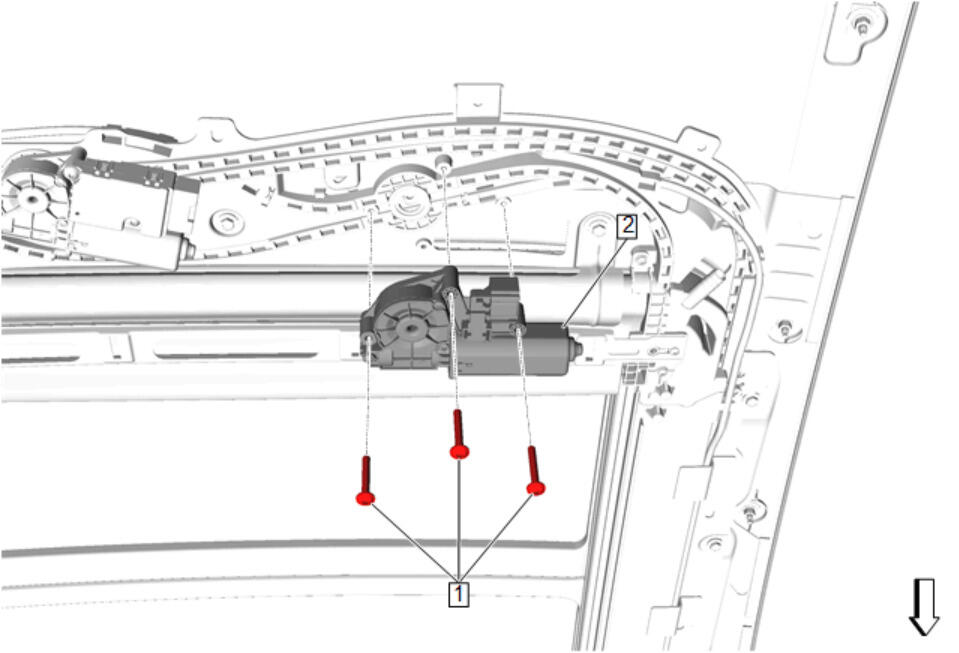

Callout	Component Name
Preliminary Procedure Headlining Trim Panel Replacement (C3U)
1	Sunroof Actuator Motor Bolt [3x] CAUTION: Fastener Caution Tighten 3.5 N.m (31 lb in)
2	Sunroof Sunshade Motor Procedure Disconnect the electrical connector. After installation, perform the Initialization process. Sunroof/Sunshade Motor Initialization

Callout

Component Name

Sunroof Actuator Motor Bolt [3x]

CAUTION:

Tighten
3.5 N.m (31 lb in)

Sunroof Sunshade Motor

Procedure

Disconnect the electrical connector.
After installation, perform the Initialization process. Sunroof/Sunshade Motor Initialization
