Front Seat Removal and Installation

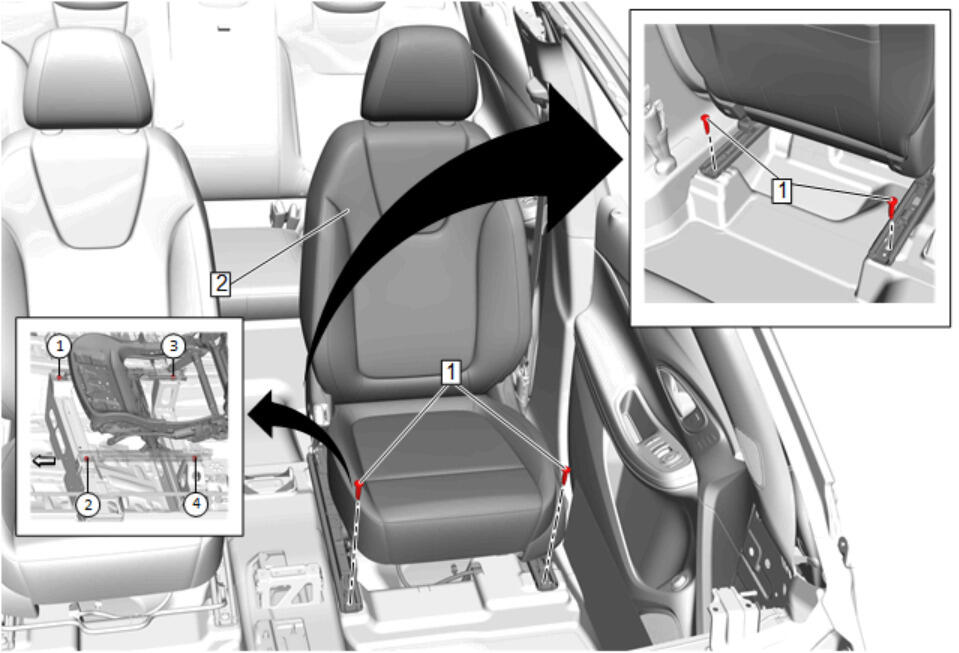

Fig 1: Identifying Front Seat Components And Bolts With Tightening Sequence

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Disconnect the electrical connectors.
1	Front Seat Bolt [4x] CAUTION: Refer to Fastener Caution . Procedure Adjust the seat forward or rearward to access the bolts. According to the sequence callouts, install and tighten the inboard bolt first, then the outboard bolt as shown in the graphic from the front area of the driver or passenger seat. Tighten 43 N.m ((32 lb ft)
2	Front Seat Procedure Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

WARNING:

Preliminary Procedures

Front Seat Bolt [4x]

CAUTION:

Procedure

Adjust the seat forward or rearward to access the bolts.
According to the sequence callouts, install and tighten the inboard bolt first, then the outboard bolt as shown in the graphic from the front area of the driver or passenger seat.

Tighten
43 N.m ((32 lb ft)

Front Seat
Procedure
Enable the SIR System. SIR Disabling and Enabling
