Rear Tire Front Air Deflector Replacement - Right Side

Courtesy of GENERAL MOTORS COMPANY

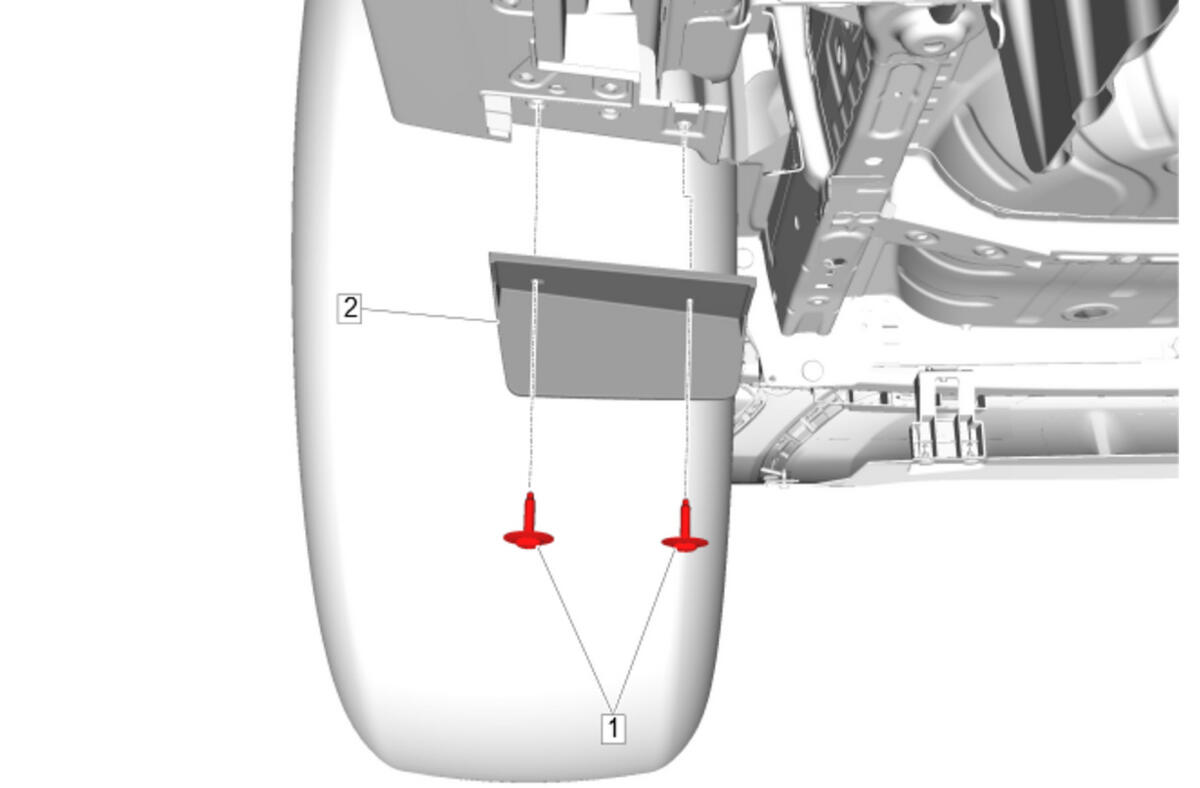

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Rear Tire Front Air Deflector Bolt [2x] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Rear Tire Front Air Deflector Procedure  Remove the support and lower the vehicle. Lifting and Jacking the Vehicle
