Hood Adjustment

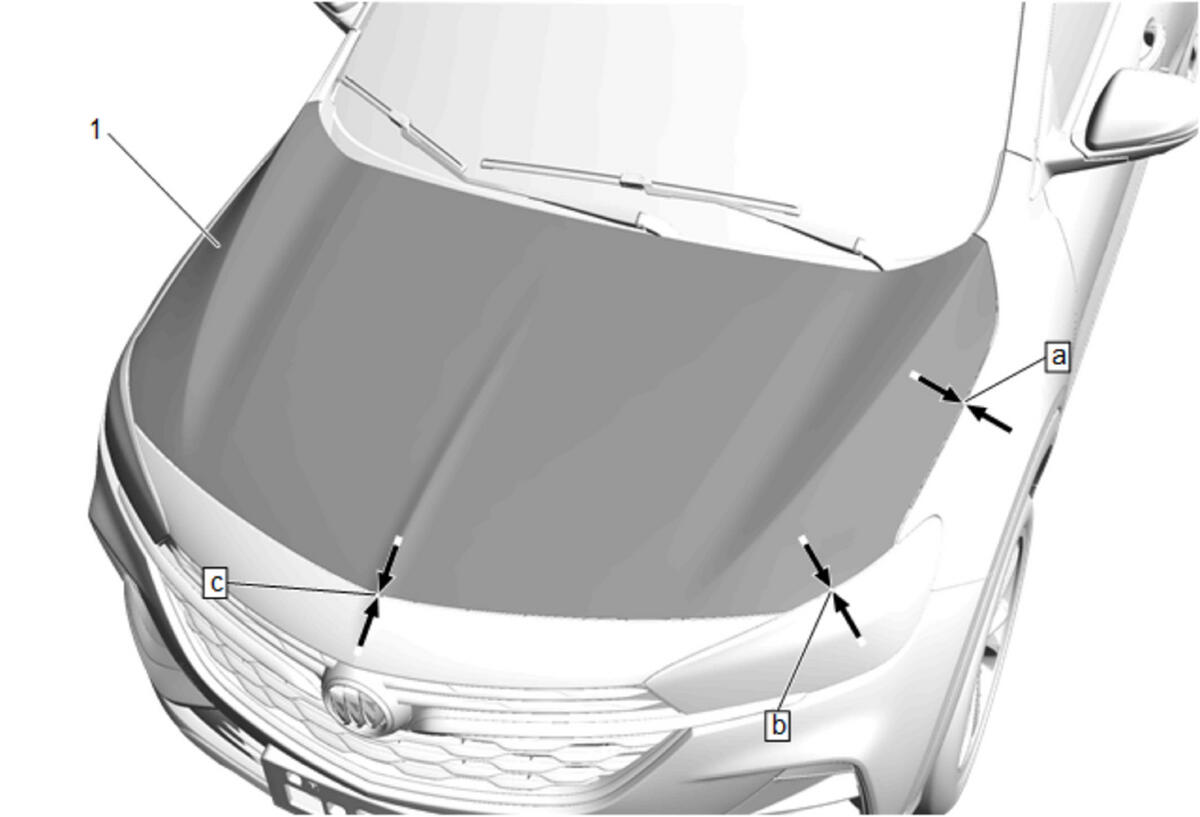

GM5255262

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

1

Hood

CAUTION:

Refer to Fastener Caution .

Procedure

Loosen the four hood hinge bolt.
Adjust the hood in order to obtain an even gap on both sides between the hood and the A-pillar, the fender, the headlamp and the grille.

Adjustment:

Hood to front fender (a) 3.0 mm ± 0.75 mm (0.12 in ± 0.03 in)
Hood to headlamp (b) 3.0 mm ± 1.0 mm (0.12 in ± 0.04 in)
Hood to front bumper fascia (c) 3.0 mm ± 1.5 mm (0.12 in ± 0.06 in)

Tighten
22 N.m (16 lb ft)
