Front Headlamp Replacement

Courtesy of GENERAL MOTORS COMPANY

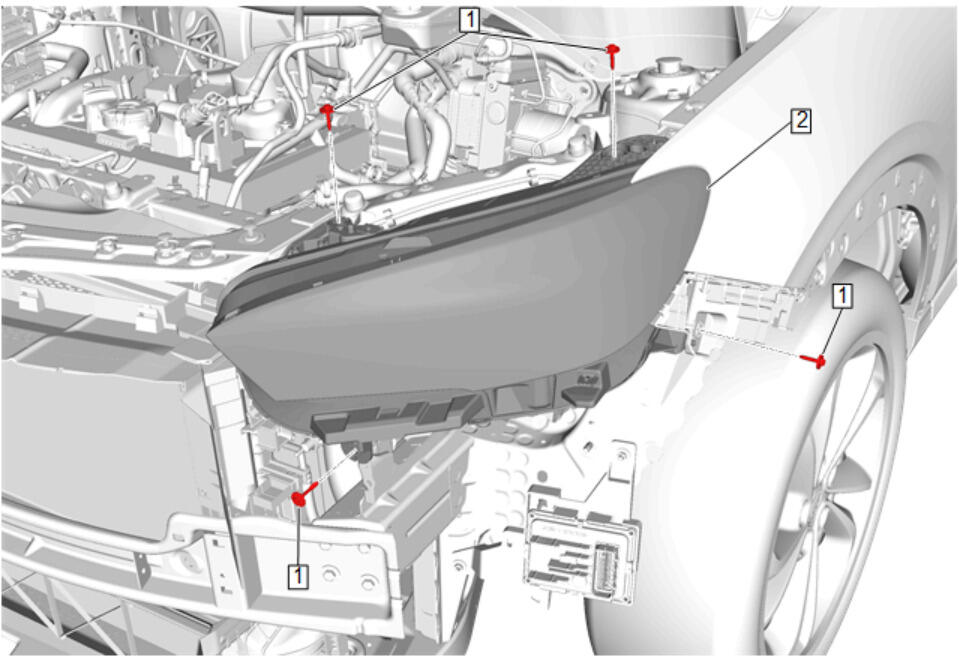

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Headlamp Bolt [4x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Headlamp Procedure Disconnect the electrical connector. Perform the headlamp aiming procedure. Front Headlamp Aiming

Callout

Component Name

Headlamp Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Headlamp

Procedure
