Radio Speaker Amplifier Replacement

Courtesy of GENERAL MOTORS COMPANY

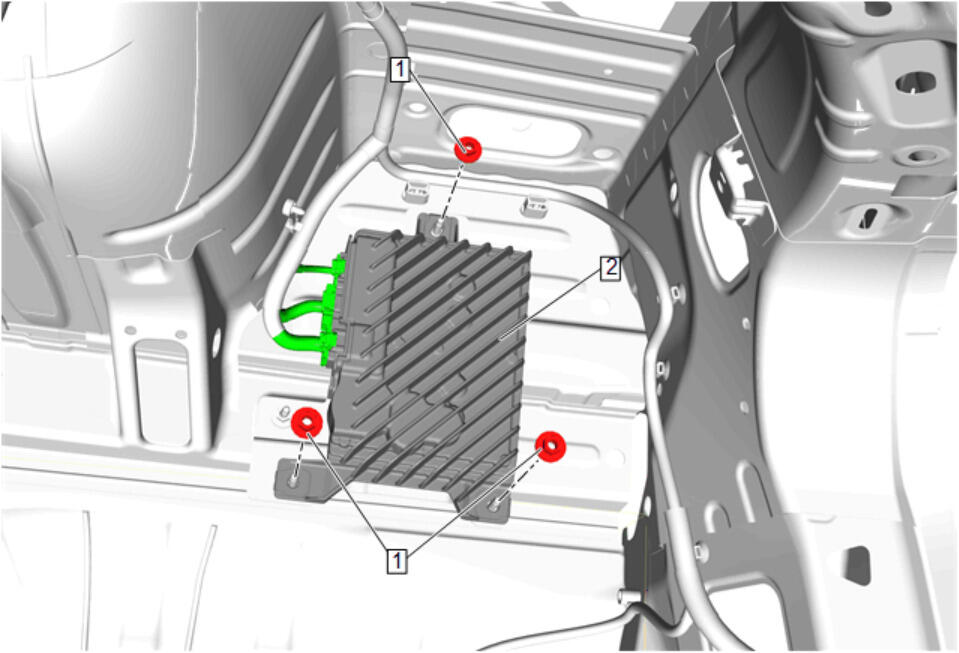

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement - Right Side
1	Radio Speaker Amplifier Nut [3x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connector. If installing a replacement amplifier, program the amplifier. Control Module References

Callout

Component Name

Radio Speaker Amplifier Nut [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Radio Speaker Amplifier

Procedure

Disconnect the electrical connector.
If installing a replacement amplifier, program the amplifier. Control Module References
