Removal Procedure

  1. GM5249727Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Right Side (1) - Remove - Instrument Panel Outer Trim Cover Replacement - Right Side

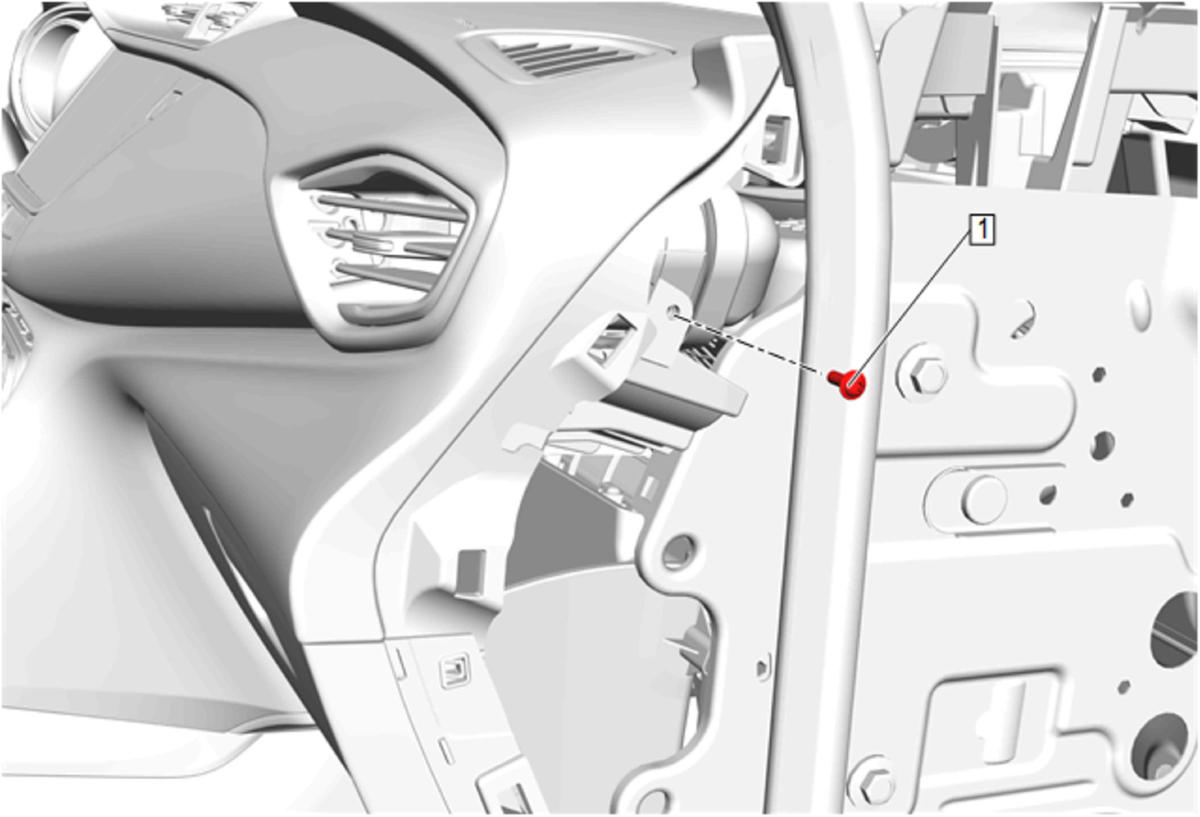

  2. GM5162905Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Duct Bolt (1) - Remove

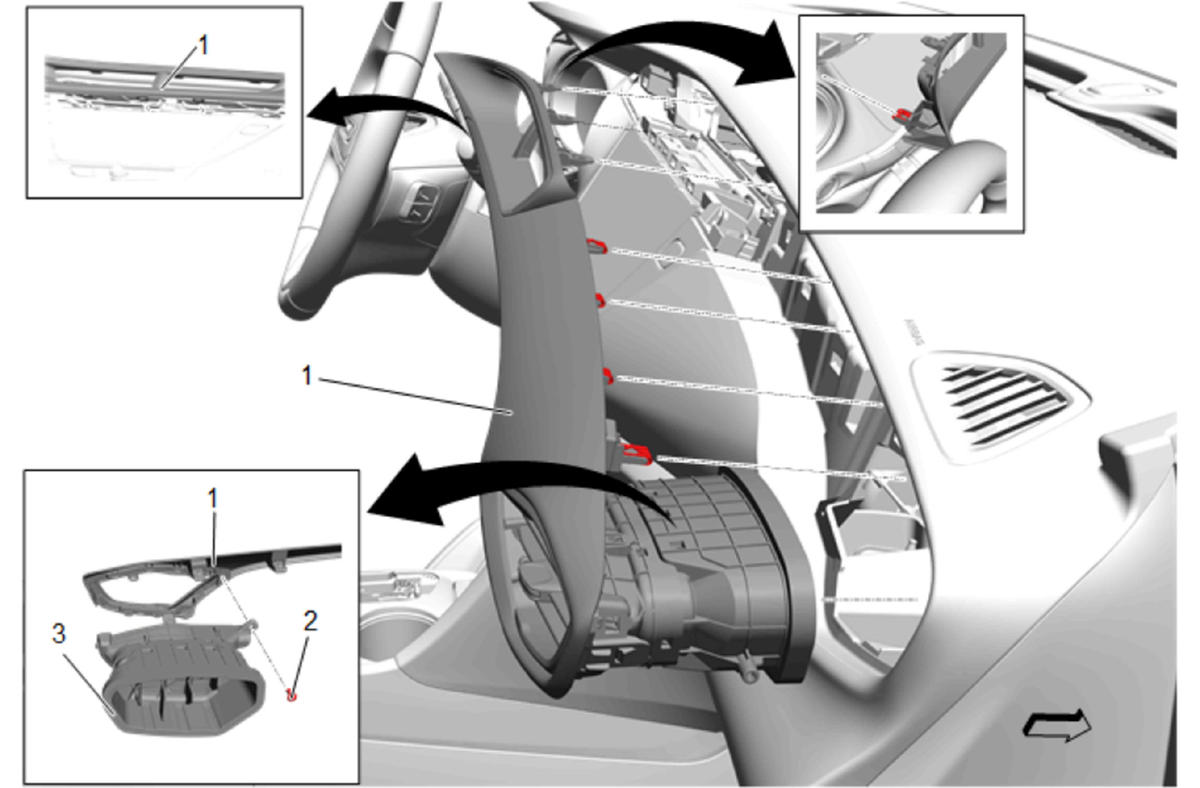

  3. GM5204907Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Remove - Use a flat bladed plastic tool to remove.

  4. Instrument Panel Accessory Bezel Bolt (2) - Remove
  5. Instrument Panel Outer Air Outlet - Right Side (3) @ Instrument Panel Trim Plate Applique (1) - Remove
