Instrument Panel Switch Trim Plate Replacement

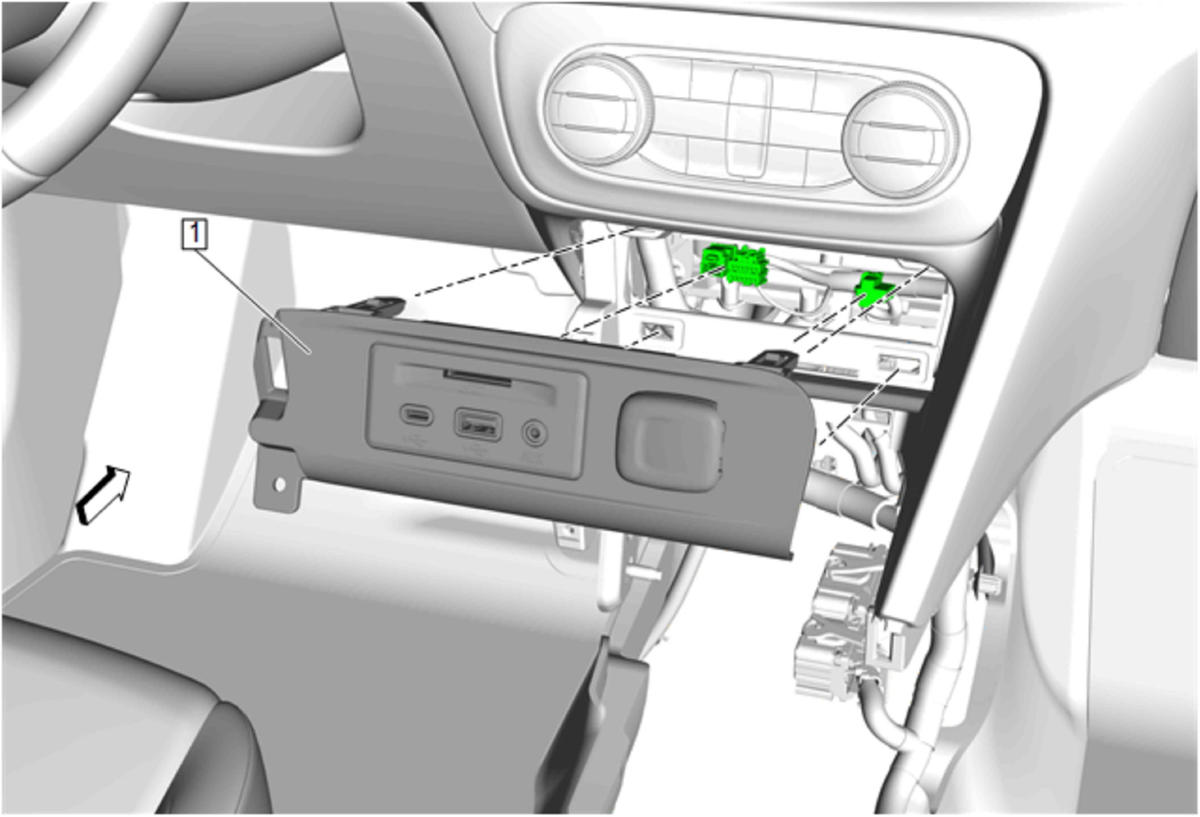

GM5344235Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Stowage Tray Replacement
1 Instrument Panel Switch Trim Plate

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect all electrical connectors.
  3. Transfer components as necessary.
