Removal Procedure

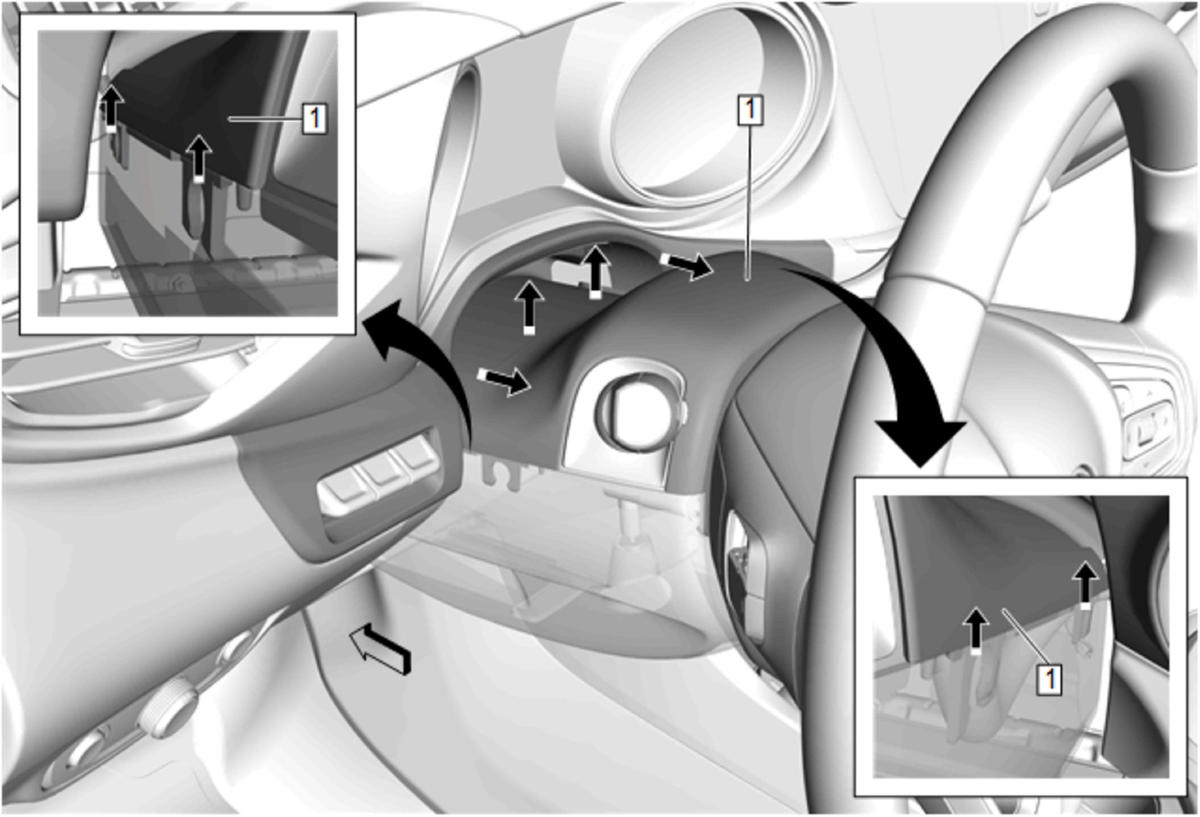

Unclip the instrument panel steering column upper trim cover (1), using a flat bladed plastic trim tool in order to lift the catch (arrow).
- Rotate the steering wheel 180 degrees, to repeat the procedure on the other side.

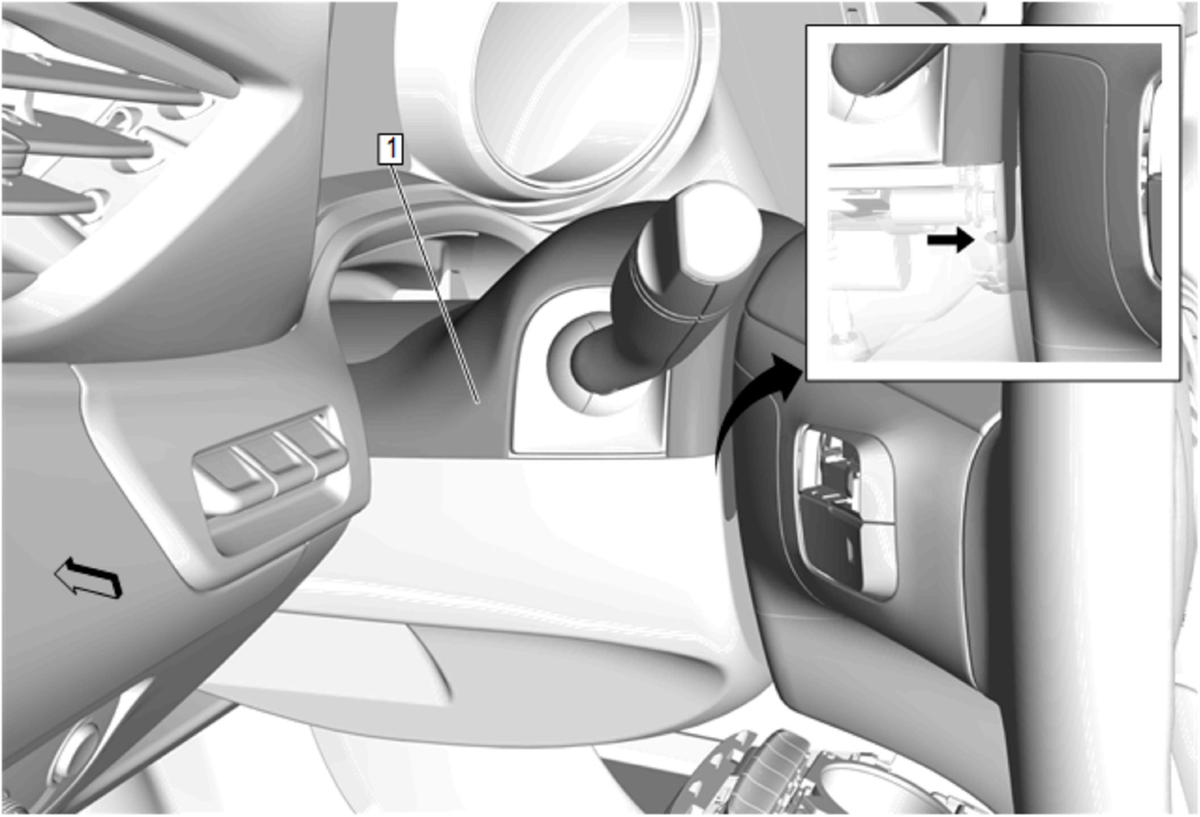

Unclip the instrument panel steering column upper trim cover (1) in the direction of the arrows, using a flat bladed plastic trim tool.
- Pull the instrument panel steering column upper trim cover (1) carefully in the direction of the arrows.
Remove the instrument panel steering column upper trim cover (1) from the vehicle using a flat bladed plastic trim tool.
- Disconnect the electrical connectors.

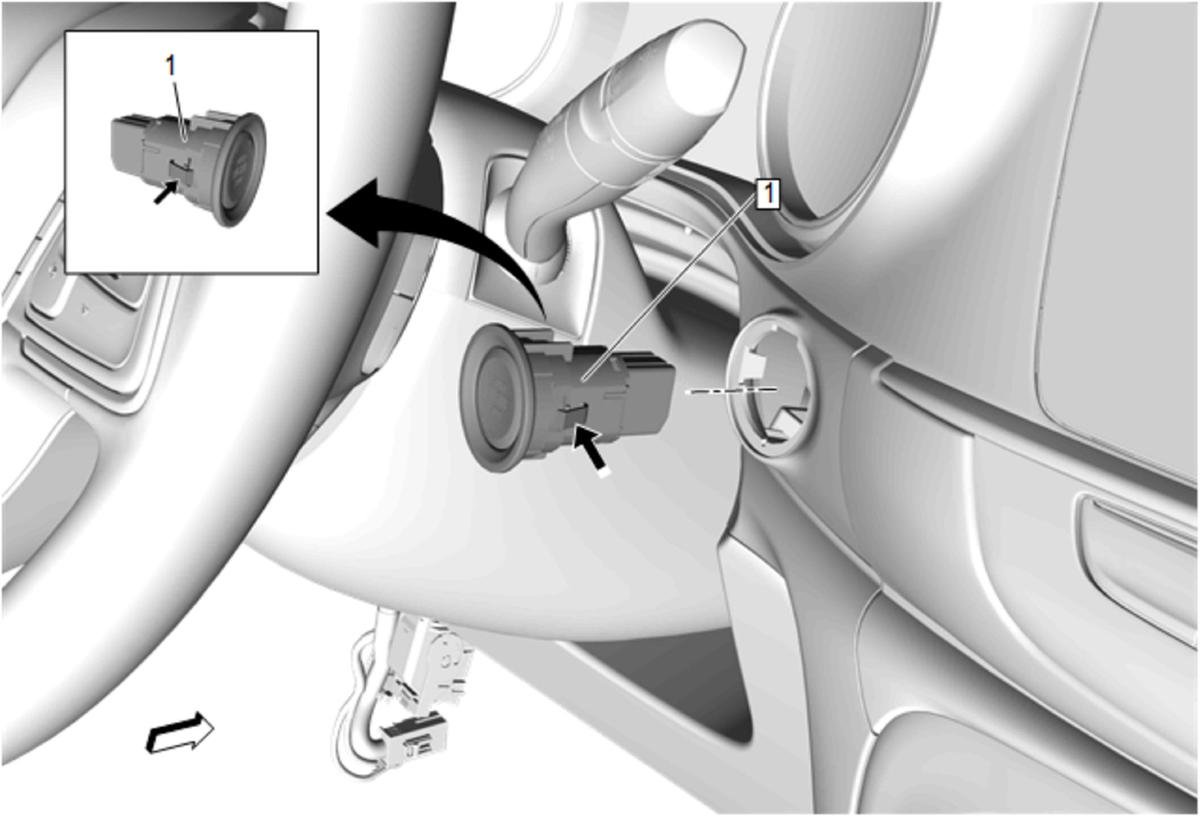

On/Off Vehicle Switch (1) - Remove - On/Off Vehicle Switch Replacement

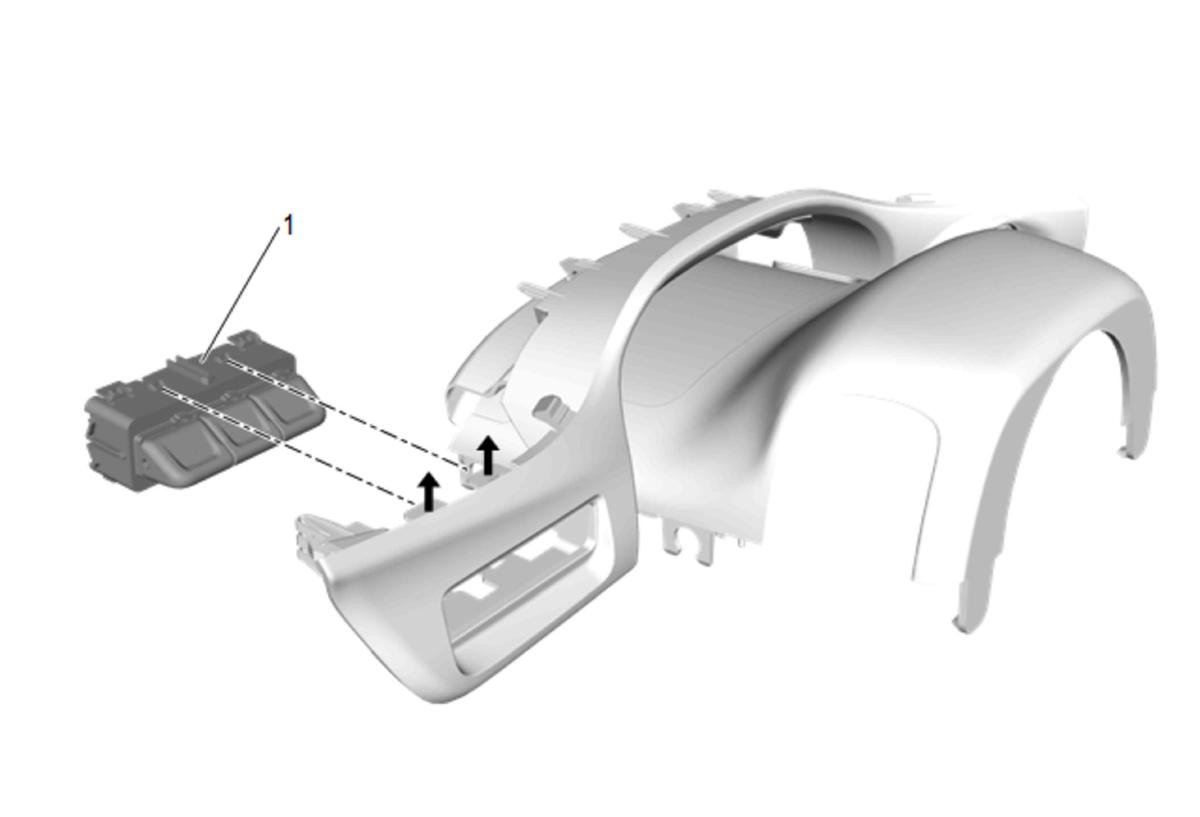

Head-Up Display Switch (1) - Remove - Head-Up Display Switch Replacement
