Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover - Left Side (1) - Remove - Instrument Panel Outer Trim Cover Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Steering Column Upper Trim Cover (1) - Reposition - Instrument Panel Steering Column Upper Trim Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

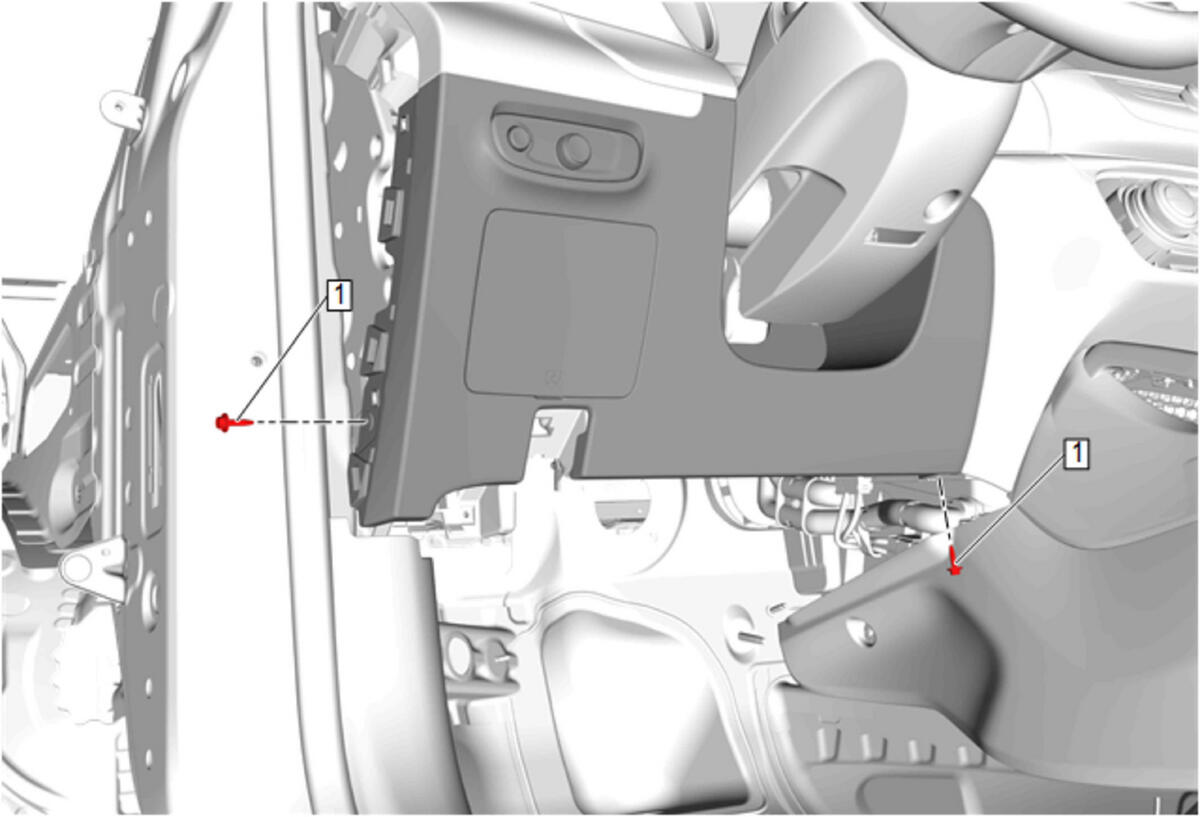

Instrument Panel Knee Bolster Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Using a flat-bladed plastic trim tool, release the retaining clips.
Instrument Panel Knee Bolster (1) - Remove
Disconnect the electrical connectors.
Transfer components as necessary.
