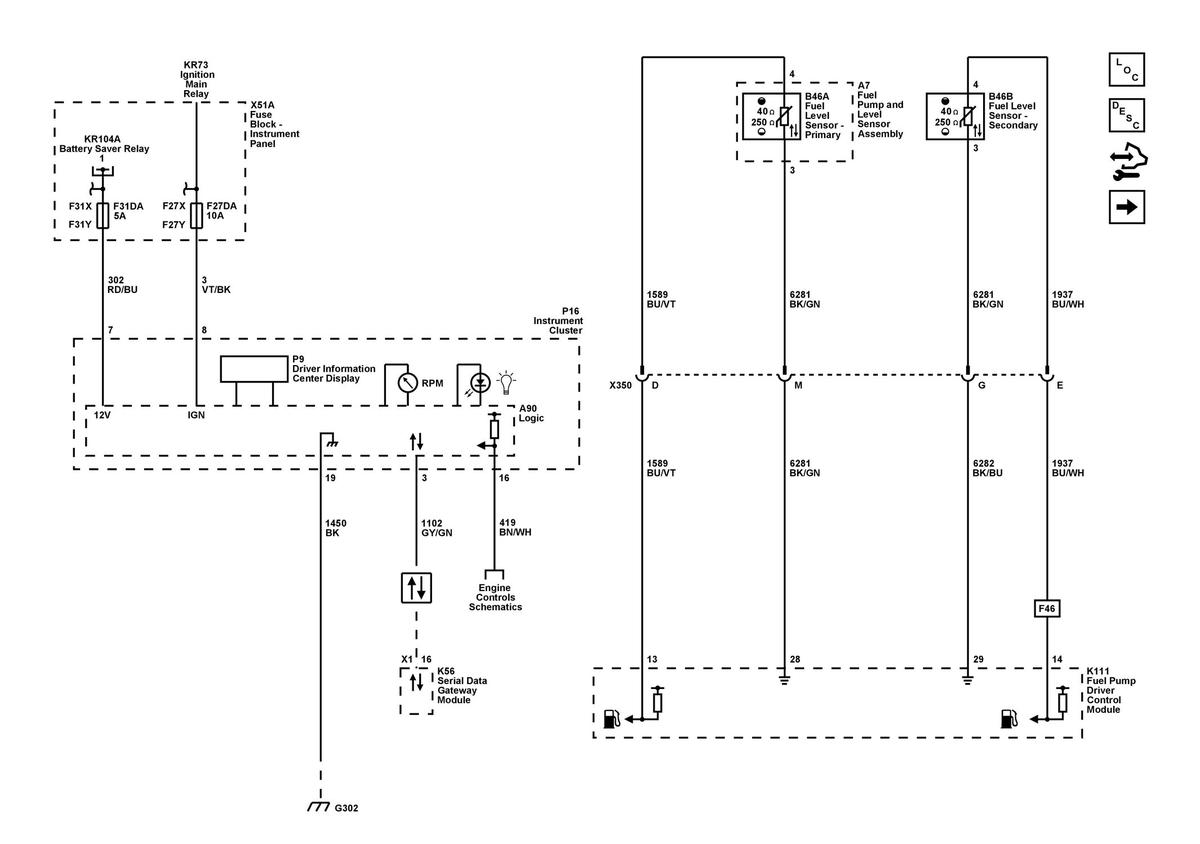

Power, Ground, Serial Data, and Gauges (Chevrolet with LE2)

GM5679255

Courtesy of GENERAL MOTORS COMPANY
