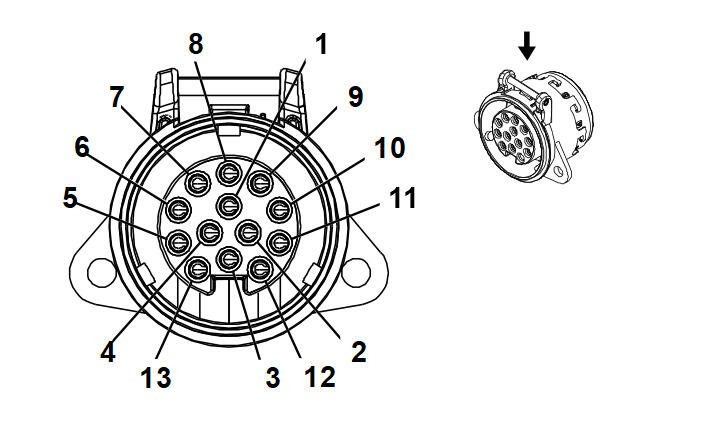

X88 Trailer Wiring Harness Connector (SDE)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Trailer
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 4 - Way
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
- |
GN |
1619 |
Right Rear Trailer Stop/Turn Lamp Control |
I |
- |
| 6 |
- |
YE |
1618 |
Left Rear Trailer Stop/Turn Lamp Control |
I |
- |
| 7 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
- |
BN |
2109 |
Trailer Park Lamp Control |
I |
- |
| 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
- |
WH |
2650 |
Ground |
I |
- |
