T4P High Frequency Antenna X1
 Courtesy of GENERAL MOTORS COMPANY
|

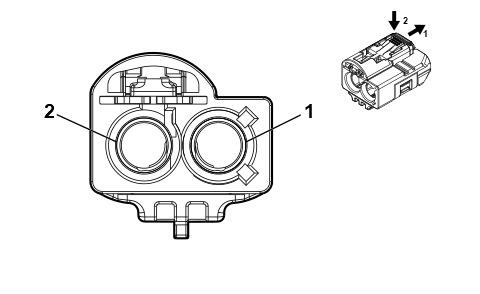

Connector Part Information
- Harness Type: Headliner COAX
- OEM Connector: 13516230
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F Coax Type (VT)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
COAX |
(GPS/Cell) Coaxial Antenna Cell/GPS combined Signal |
I |
- |
| 2 |
- |
- |
COAX |
(XM +/-HD) Coaxial Antenna XM Signal |
I |
U2K |
