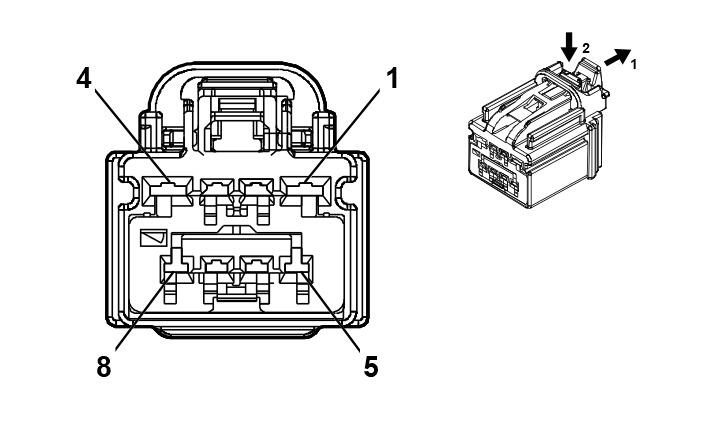

M81F Sunroof Sunshade Motor - Front (C3U)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Sunroof
- OEM Connector: 7289-9155-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 8 - Way F 1.5, 2.8 YESC Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
RD |
3781 |
Front Sunroof Sunshade Motor Open Control |
I |
C3U |
| 2 |
0.35 |
RD |
3032 |
Front Sunshade Switch Signal |
I |
C3U |
| 3 |
0.35 |
WH |
10285 |
Front Sunshade Motor Position Sensor Low Reference |
I |
C3U |
| 4 |
2.5 |
BK |
3782 |
Front Sunshade Motor Close Control |
I |
C3U |
| 5 |
0.35 |
GN |
10286 |
Front Sunshade Motor Position Sensor High Reference |
I |
C3U |
| 6 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
