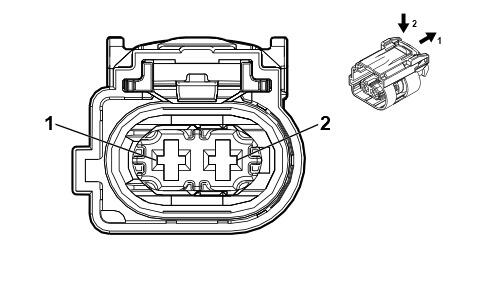

G19 Rear Window Washer Pump

GM5581744Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13536184
  • Service Connector: 85005017
  • Description: 2 - Way F 2.8 MCP Series, Sealed (BU)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I Not required J-35616-4A (PU) No Tool Required
Pin Size Color Circuit Function Terminal Type ID Option
1 0.75 BU / VT 392 Rear Window Washer Pump Control I -
2 0.75 BK 1150 Ground I -
