E42R Rear Body Structure Stop Lamp - Right (Y6S)
 Courtesy of GENERAL MOTORS COMPANY
|

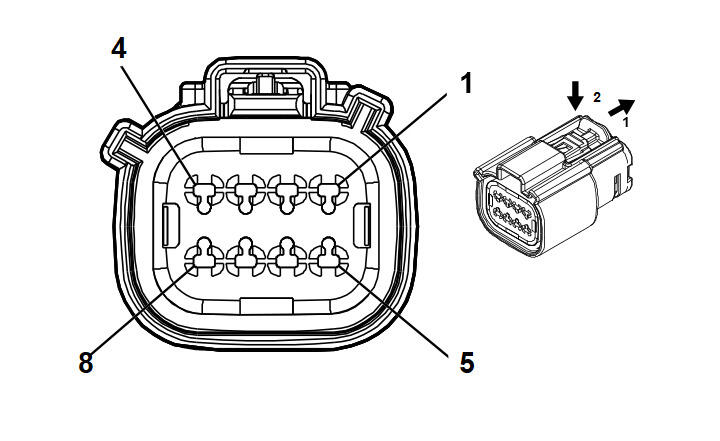

Connector Part Information
- Harness Type: Body
- OEM Connector: 33472-4807
- Service Connector: 19368966
- Description: 8 - Way F 1.5 MX Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| II |
Not required |
J-35616-2A (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
BK |
2650 |
Ground |
I |
Y6S |
| 2 |
0.5 |
BN / GY |
6995 |
Right Rear Park Lamp Control |
I |
Y6S |
| 3 |
0.5 |
WH / YE |
7541 |
Right Rear Stop Lamp Control |
I |
Y6S |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.5 |
BU / VT |
1335 |
Right Rear Turn Signal Lamp Control 2 |
I |
Y6S |
| 6 |
0.35 |
WH / BK |
7544 |
Right Rear Turn Signal Lamp Feedback Signal |
I |
Y6S |
| 7 |
0.75 |
YE / GN |
2024 |
Animation Lighting Control |
II |
Y6S |
| 8 |
1.5 |
RD / BU |
3940 |
Battery Positive Voltage |
I |
Y6S |
