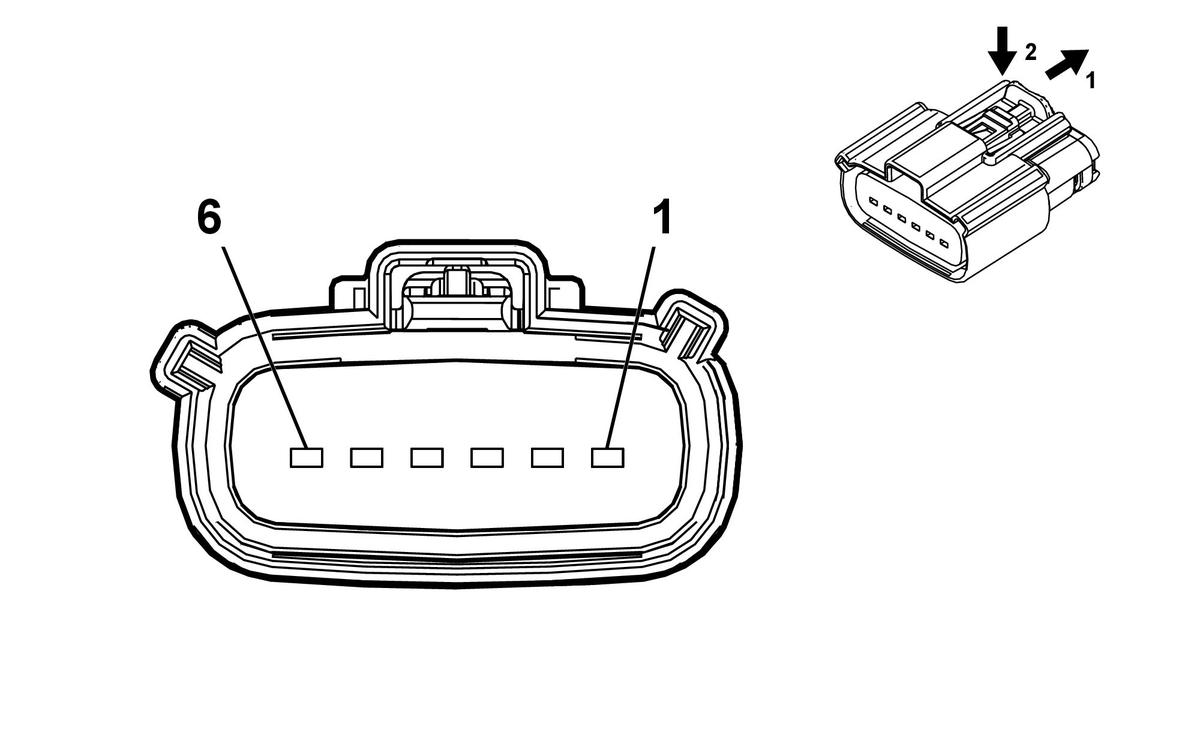

E42L Rear Body Structure Stop Lamp - Left (-Y6S)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 33471-6007
- Service Connector: 85005019
- Description: 6 - Way F 1.5 Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| II |
Not required |
J-35616-2A (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
2350 |
Ground |
II |
-Y6S |
| 2 |
0.5 |
BN / BU |
6993 |
Left Rear Park Lamp Control |
I |
-Y6S |
| 3 |
0.5 |
GY / YE |
7542 |
Left Rear Stop Lamp Control |
I |
-Y6S |
| 5 |
0.5 |
BU / WH |
1334 |
Left Rear Turn Signal Lamp Control 2 |
I |
-Y6S |
| 6 |
0.35 |
WH / VT |
6567 |
Rear Turn Signal Lamp Feedback Signal |
I |
-Y6S |
