E13LA Front Headlamp - Left (T95/YS6)
 Courtesy of GENERAL MOTORS COMPANY
|

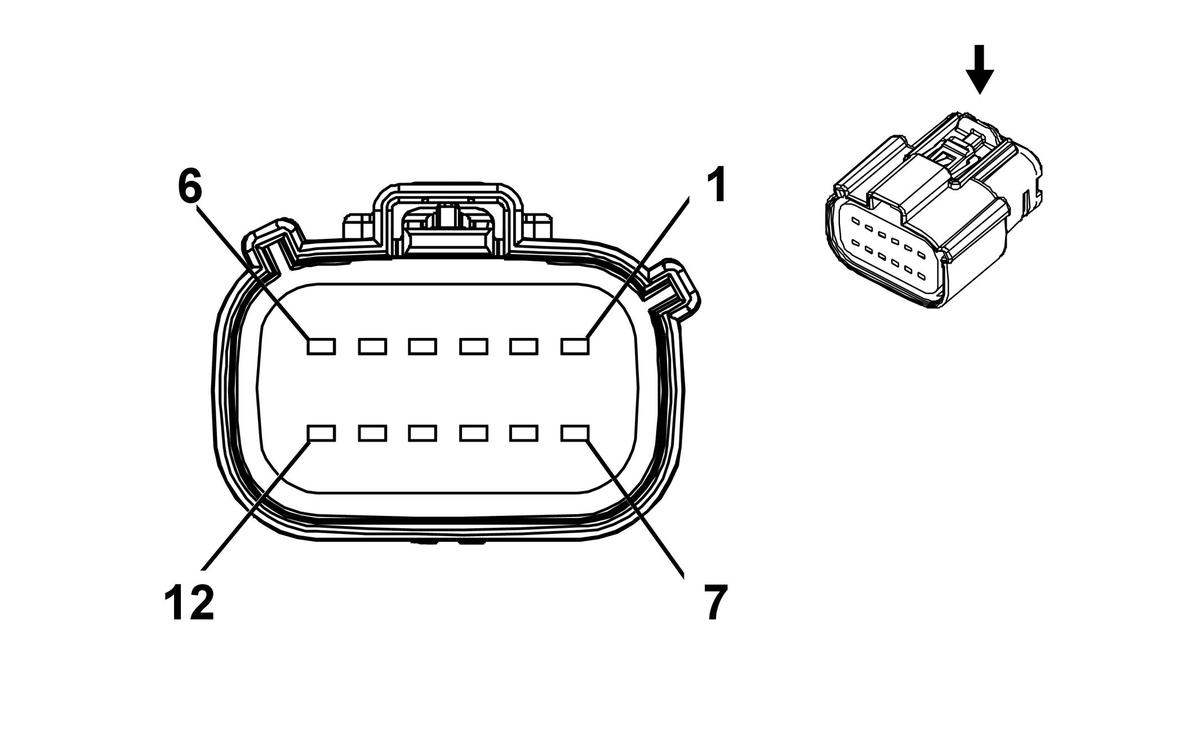

Connector Part Information
- Harness Type: Body
- OEM Connector: 33472-1288
- Service Connector: 19333239
- Description: 12 - Way F 1.5 MX Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
85528055 |
J-35616-14 (GN) |
J-38125-217 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
1150 |
Ground |
I |
T95-F48 |
| 2 |
0.75 |
RD / GN |
3840 |
Battery Positive Voltage |
I |
T95-F48 |
| 3 |
0.5 |
YE |
712 |
Left Headlamp Low Beam Control |
I |
T95-F48 |
| 4 |
0.5 |
WH |
711 |
Left Headlamp High Beam Control |
I |
T95 |
| 5 |
0.5 |
BU / WH |
1314 |
Left Front Turn Signal Lamp Control |
I |
T95-F48 |
| 6 |
0.35 |
VT / BK |
6568 |
Front Turn Signal Lamp Feedback Signal |
I |
T95-F48 |
| 7 |
0.75 |
GY / BU |
7538 |
Left Front DRL Control |
I |
T95-F48 |
| 8 |
0.75 |
YE / GN |
2024 |
Animation Lighting Control |
I |
T95-F48 |
| 9 |
0.35 |
BU / BN |
2191 |
Private Serial Data Headlamp Leveling CAN Bus [+] Serial Data |
I |
T95-F48 |
| 10 |
0.35 |
WH / YE |
2190 |
Private Serial Data Headlamp Leveling CAN Bus [-] Serial Data |
I |
T95-F48 |
| 11 |
0.5 |
WH / BU |
10132 |
Headlamp Leveling CAN Bus Communication Enable |
I |
T95-F48 |
| 12 |
- |
- |
- |
Not Occupied |
- |
- |
