A9A Outside Rearview Mirror - Driver
 Courtesy of GENERAL MOTORS COMPANY
|

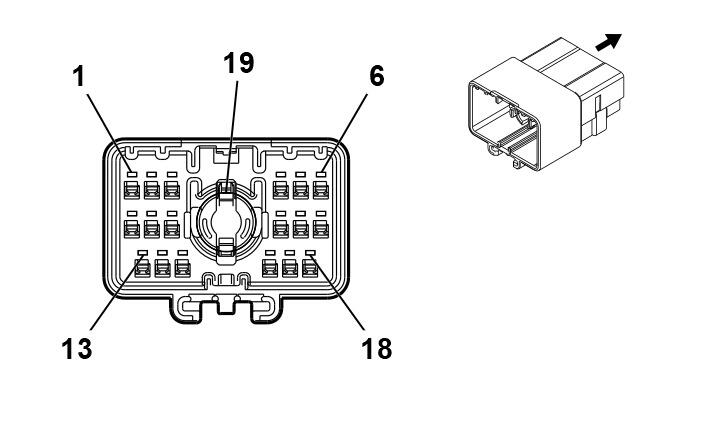

Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 13518414
- Service Connector: Service by Harness - See Part Catalog
- Description: 19 - Way M 1.2 MCON, Coaxial Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-17 (LT GN) |
No Tool Required |
| II |
Not required |
Pending |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BN / BK |
2790 |
Left Front Mirror Motor Right [+] Left [-] Control |
I |
- |
| 2 |
0.35 |
VT / BU |
2788 |
Left Front Mirror Motor Up [+] Down [-] Control |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
GY / YE |
1760 |
Left Side Object Detection LED Control |
I |
UKC |
| 5 |
0.5 |
BK |
1550 |
Ground |
I |
- |
| 6 |
0.35 |
WH / YE |
2792 |
Left Front Mirror Position Sensor Left [-] Right [+] Signal |
I |
A45 |
| 7 |
0.35 |
WH |
606 |
Left Outside Rearview Mirror Heater Control |
I |
- |
| 8 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
VT / RD |
2791 |
Left Front Mirror Position Sensor High Reference |
I |
A45 |
| 11 |
0.35 |
GY / BN |
2787 |
Left Front Mirror Position Sensor Up [+] Down [-] Signal |
I |
A45 |
| 12 |
0.35 |
BK / YE |
1691 |
Automatic Day/Night Mirror Low Reference |
I |
DD8 |
| 13 |
- |
- |
- |
Not Occupied |
- |
- |
| 14 |
0.35 |
YE / BN |
2789 |
Left Front Mirror Motor Common Control |
I |
- |
| 15 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
| 17 |
0.35 |
YE / WH |
1690 |
Mirror Dimming Signal |
I |
DD8 |
| 18 |
0.35 |
BK / BN |
673 |
Left Outside Rearview Mirror Position Sensor Low Reference |
I |
A45 |
| 19 |
- |
- |
Coax Cable |
Coax Cable |
II |
UV2 |
