Home >> Buick >> 2021 >> Envision Preferred, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Fuel Level and Driver Information Center

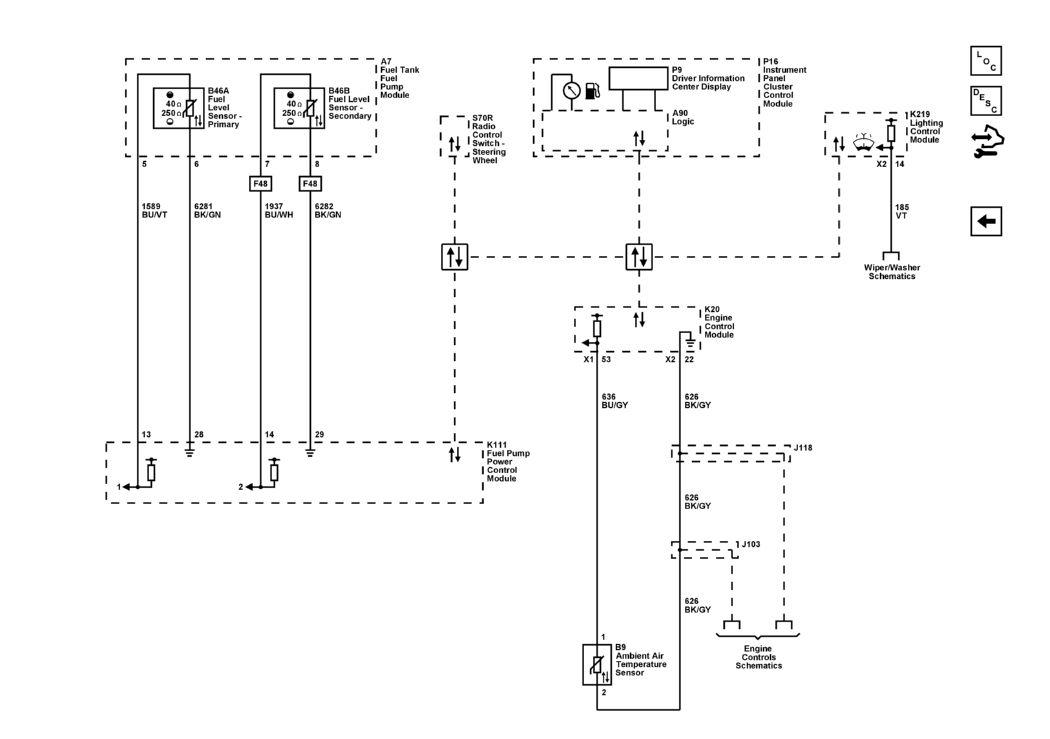

Fuel Level and Driver Information Center

GM5572081

Courtesy of GENERAL MOTORS COMPANY
