Head-Up Display Replacement

Courtesy of GENERAL MOTORS COMPANY

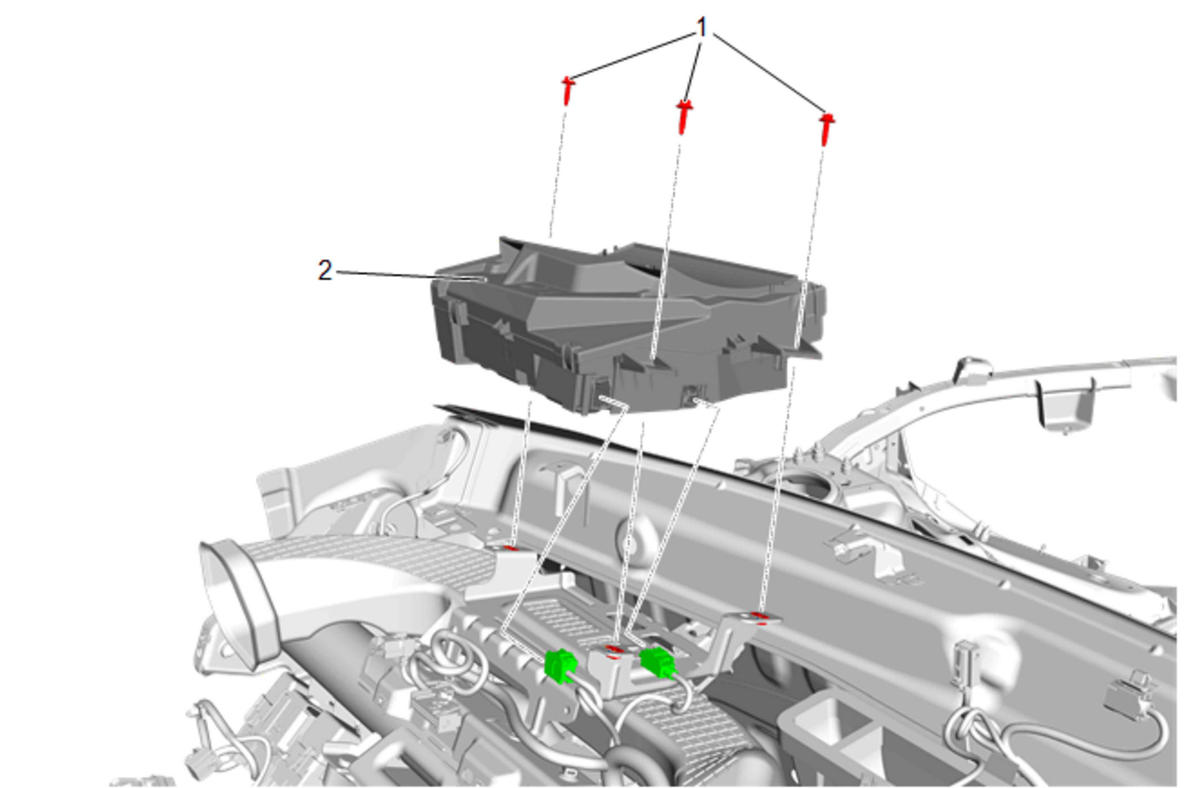

Callout	Component Name
Preliminary Procedure Instrument Panel Carrier Replacement
1	Head-Up Display Bolt [3x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Head-Up Display Procedure Disconnect the electrical connectors.
