Head-Up Display Bracket Replacement

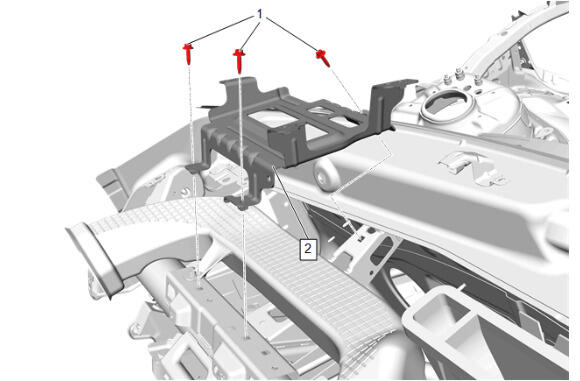

GM5612994Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Carrier Replacement
  2. Head-Up Display Replacement
1 Head-Up Display Bracket Bolt [3x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Head-Up Display Bracket
