Ambient Air Temperature Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

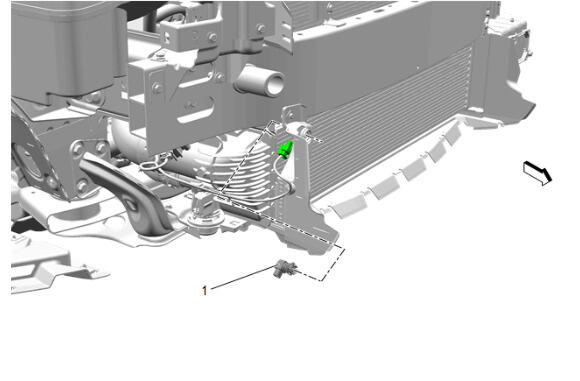

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Removal and Installation
1	Ambient Air Temperature Sensor Procedure Squeeze the tabs on the ambient air temperature sensor, and push ambient air temperature sensor back out of the radiator air side baffle. Disconnect the electrical connector.

Callout

Component Name

Ambient Air Temperature Sensor

Procedure

Squeeze the tabs on the ambient air temperature sensor, and push ambient air temperature sensor back out of the radiator air side baffle.
Disconnect the electrical connector.
