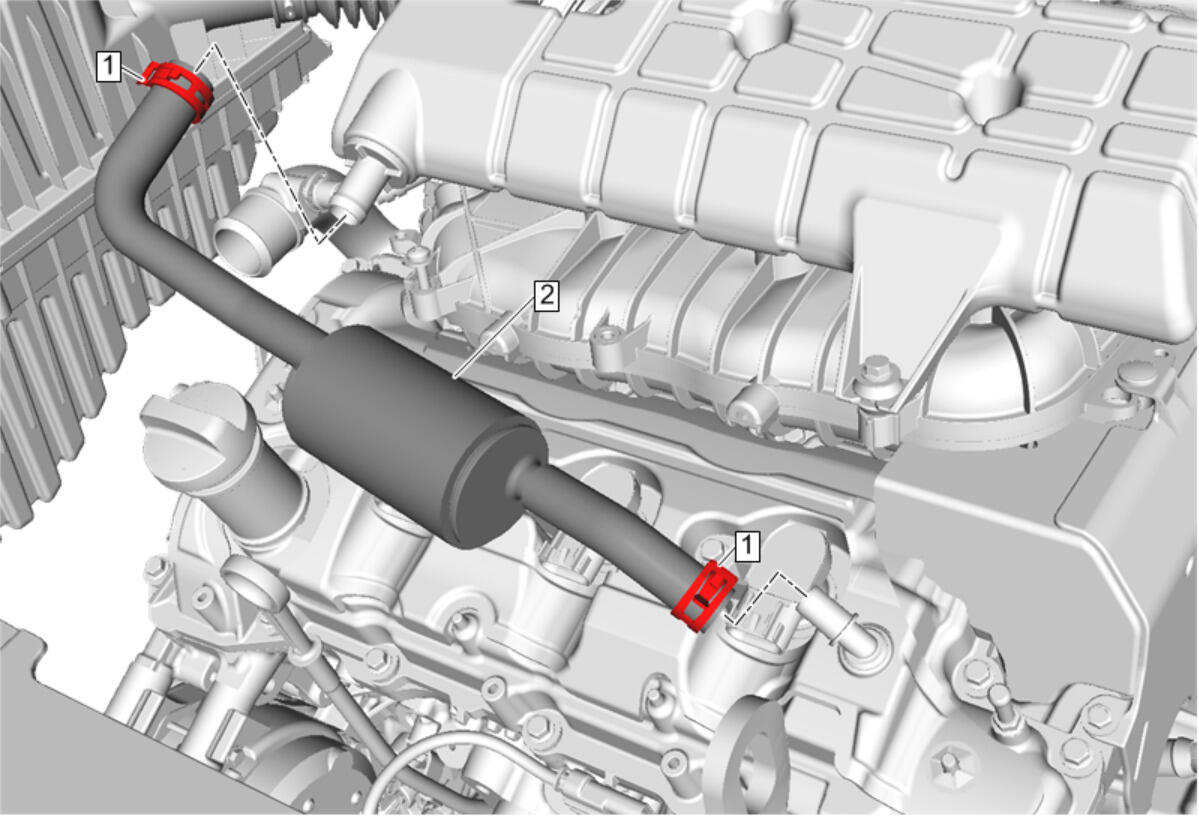

Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Air Cleaner Outlet Duct to Camshaft Cover)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Intake Manifold Cover Replacement |
|
| 1 | Hose Clamp Procedure Hose Clamp (1) - Disengage [ 2x ] - Hose Clamp Replacement Guidelines - Spring Type |
| 2 | Positive Crankcase Ventilation Tube |
