Installation Procedure

Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Brake Pipe - Install
Remove the plug from the brake pressure modulator valve inlet port.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Brake Pipe Fitting (1) - Install and tighten 32 N.m (24 lb-ft)
Remove the plug from the master cylinder outlet port.
Courtesy of GENERAL MOTORS COMPANY

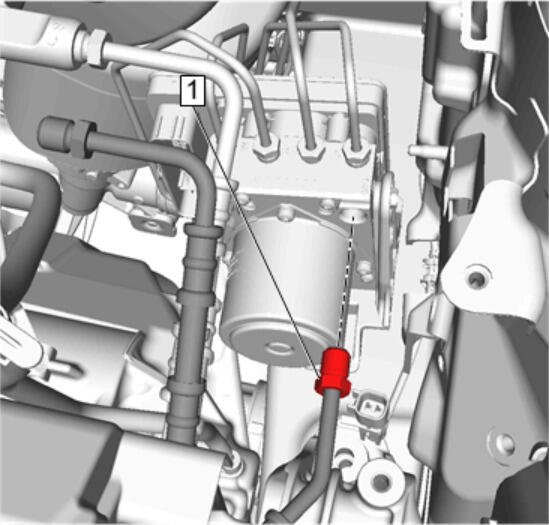

Brake Pressure Modulator Valve Master Cylinder Reservoir Front Brake Pipe Fitting (1) - Install and tighten 32 N.m (24 lb-ft)
Reposition and install the radiator surge tank. - Radiator Surge Tank Replacement
Bleed the brake system.
Hydraulic Brake System Bleeding (Manual) , or

Hydraulic Brake System Bleeding (Pressure) .
