Front Side Door Upper Hinge and Lower Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

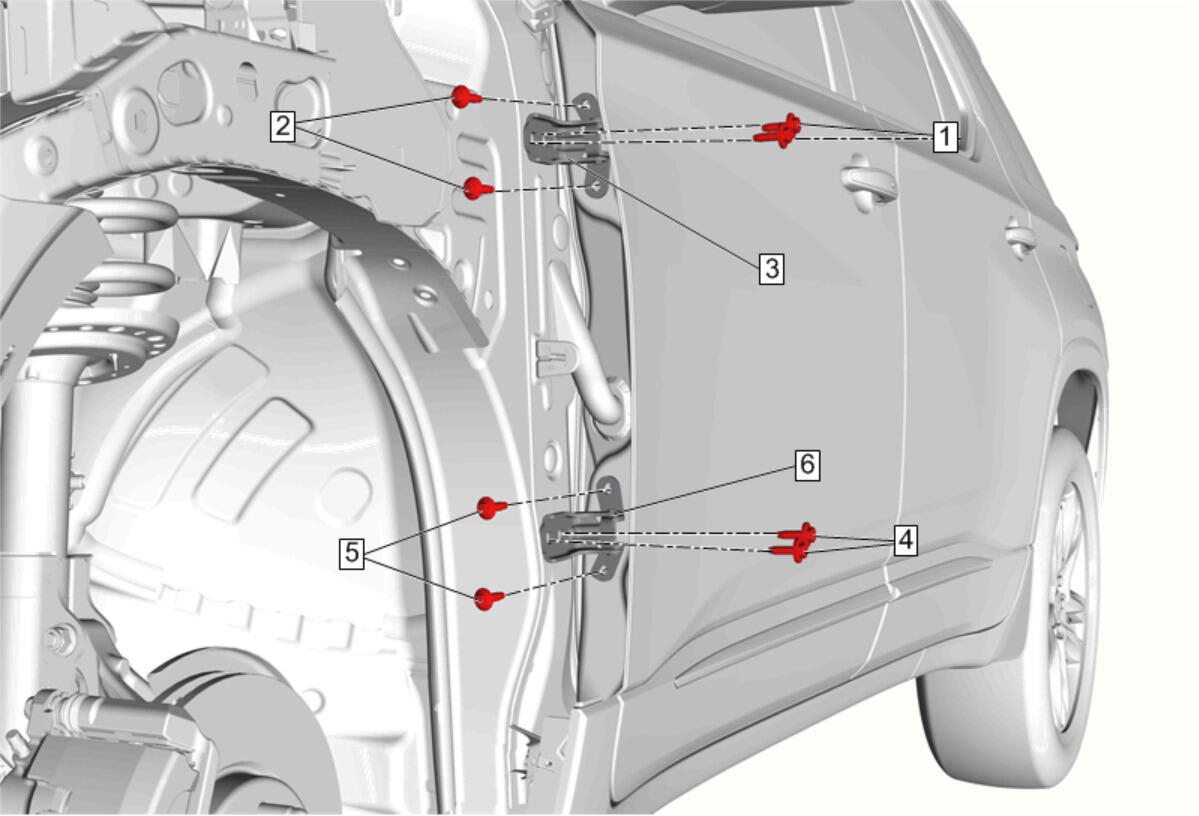

Callout	Component Name
Preliminary Procedures Apply masking tape to the edges of the door. Front Fender Replacement Mark the location of the hinge with a grease pencil before removing the bolts.
1	Front Side Door Hinge Bolt - Body Side [ 2x ] CAUTION: Refer to Fastener Caution . Procedure Keep the door in the closed position. Replace one hinge at a time. Tighten 32 N.m (24 lb ft)
2	Front Side Door Hinge Bolt - Door Side [ 2x ] Tighten 25 N.m (18 lb ft)
3	Front Side Door Upper Hinge
4	Front Side Door Hinge Bolt - Body Side [ 2x ] Tighten 32 N.m (24 lb ft)
5	Front Side Door Hinge Bolt - Door Side [ 2x ] Tighten 25 N.m (18 lb ft)
6	Front Side Door Lower Hinge Procedure Front Side Door Adjustment
