X901 License Lamp Harness to Liftgate Harness (-DRZ)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

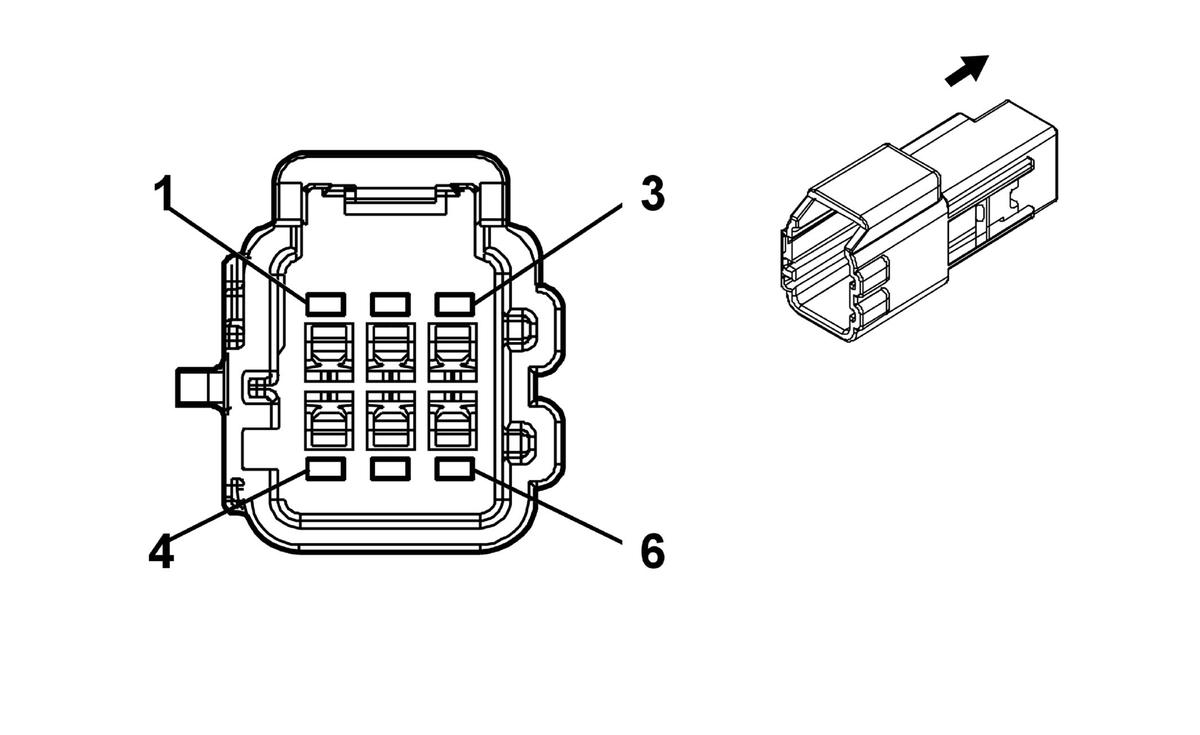

Connector Part Information
- Harness Type: License Lamp
- OEM Connector: 13532427
- Service Connector: Service by Harness -
- Description: 6-Way F 1.2 Series (GY)
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 13591370
- Service Connector: Service by Harness -
- Description: 6-Way M 1.2 OCS Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
Pending |
No Tool Required |
| II |
Not required |
Pending |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 2 |
0.35 |
BK |
1350 |
I |
-DRZ |
Ground |
2 |
0.35 |
BK |
1350 |
II |
-DRZ |
| 3 |
0.35 |
GN/YE |
6846 |
I |
-DRZ |
Rear License Plate Lamp Control |
3 |
0.35 |
GN/YE |
6846 |
II |
-DRZ |
| 4 |
0.5 |
YE/BU |
5797 |
I |
-DRZ |
Rear Closure Handle Switch Open Signal |
4 |
0.5 |
YE/BU |
5797 |
II |
-DRZ |
| 5 |
0.35 |
BK/VT |
5801 |
I |
-DRZ |
Liftgate Object Sensor Low Reference |
5 |
0.35 |
BK/VT |
5801 |
II |
-DRZ |
