X511 Driver Door Harness to Sideview Camera - Left Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

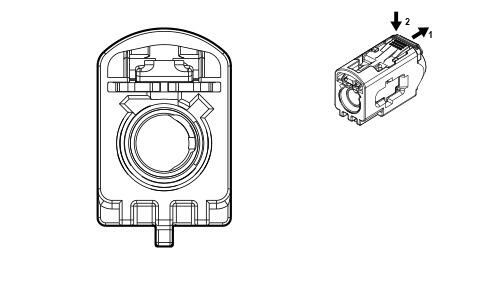

Connector Part Information
- Harness Type: Driver Door COAX
- OEM Connector: 13516213
- Service Connector: Service by Cable Assembly -
- Description: 1-Way F Coax Type (BK)
|
Connector Part Information
- Harness Type: Sideview Camera - Left COAX
- OEM Connector: Not Available
- Service Connector: Service by Cable Assembly -
- Description: 1-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
Coax Cable |
- |
I |
- |
Left Side Curb Camera Coaxial Video Signal |
- |
- |
Coax Cable |
- |
I |
- |
