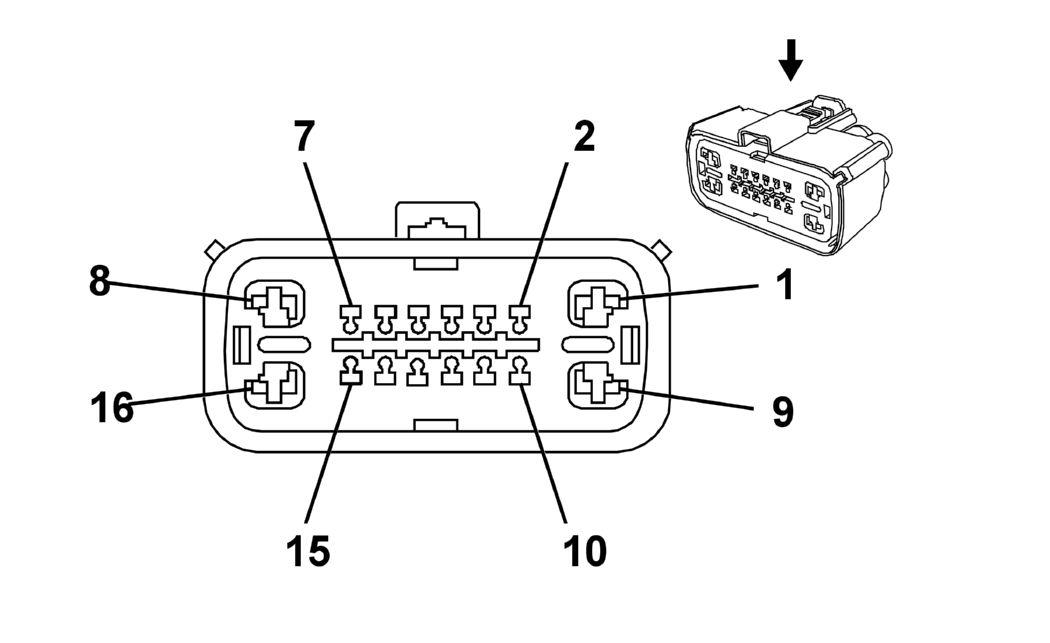

X411 Trailer Harness to Body Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Trailer
- OEM Connector: Not Available
- Service Connector: Service by Harness -
- Description: 16-Way F
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 34986-1931
- Service Connector: 19366647
- Description: 16-Way M 1.5, 2.8 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-4A (PU) |
No Tool Required |
| II |
13576377 |
J-35616-5 (PU) |
J-38125-12A |
| III |
19119842 |
J-35616-3 (GY) |
J-38125-217 |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
3 |
BK |
22 |
I |
V92 |
Trailer Ground |
1 |
3 |
BK |
22 |
II |
V92 |
| 2 |
- |
- |
- |
- |
- |
Not Occupied |
2 |
- |
- |
- |
- |
- |
| 3 |
0.75 |
WH/GN |
1624 |
I |
V92 |
Trailer Backup Lamp Control |
3 |
0.75 |
WH/GN |
1624 |
III |
V92 |
| 4 - 5 |
- |
- |
- |
- |
- |
Not Occupied |
4 - 5 |
- |
- |
- |
- |
- |
| 6 |
0.75 |
YE/BU |
318 |
I |
V92 |
Left Rear Trailer Stop/Turn Lamp Control |
6 |
0.75 |
YE/BU |
318 |
III |
V92 |
| 7 |
0.75 |
GN/BN |
319 |
I |
V92 |
Right Rear Trailer Stop/Turn Lamp Control |
7 |
0.75 |
GN/BN |
319 |
III |
V92 |
| 8 |
3 |
RD/GN |
742 |
I |
V92 |
Battery Positive Voltage |
8 |
3 |
RD/GN |
742 |
II |
V92 |
| 9 |
3 |
BK |
22 |
I |
V92 |
Trailer Ground |
9 |
3 |
BK |
22 |
II |
V92 |
| 10 |
- |
- |
- |
- |
- |
Not Occupied |
10 |
- |
- |
- |
- |
- |
| 11 |
1.5 |
GY/BN |
2109 |
I |
V92 |
Trailer Park Lamp Control |
11 |
1.5 |
GY/BN |
2109 |
III |
V92 |
| 12 - 15 |
- |
- |
- |
- |
- |
Not Occupied |
12 - 15 |
- |
- |
- |
- |
- |
| 16 |
2.5 |
BU |
47 |
I |
V92 |
Trailer Auxiliary Control |
16 |
2.5 |
BU |
47 |
II |
V92 |
