X340 Body to 3rd Row Seat
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

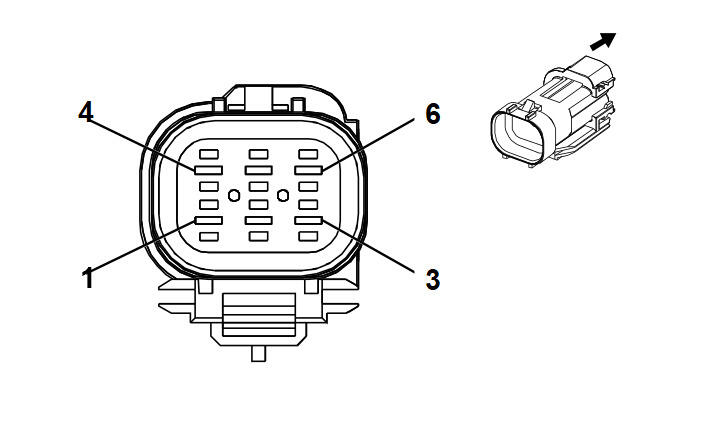

Connector Part Information
- Harness Type: Body
- OEM Connector: 13125598
- Service Connector: 19332889
- Description: 6-Way F 2.8 Junior Power Timer Series, Sealed (BK)
|
Connector Part Information
- Harness Type: 3rd Row Seat
- OEM Connector: Not Available
- Service Connector: Service by Harness -
- Description: 6-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-4A (PU) |
No Tool Required |
| II |
Not required |
J-35616-5 (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
2.5 |
RD/BU |
1240 |
I |
AS8 |
Battery Positive Voltage |
1 |
2.5 |
RD/BU |
1240 |
II |
AS8 |
| 2 |
0.5 |
GN |
4224 |
I |
AS8 |
3rd Row Left Seat Recline Rearward Signal |
2 |
0.5 |
GN |
4224 |
II |
AS8 |
| 3 |
0.5 |
GN/BK |
4223 |
I |
AS8 |
3rd Row Left Seat Recline Forward Signal |
3 |
0.5 |
GN/BK |
4223 |
II |
AS8 |
| 4 |
0.5 |
YE |
4220 |
I |
AS8 |
3rd Row Right Seat Recline Rearward Signal |
4 |
0.5 |
YE |
4220 |
II |
AS8 |
| 5 |
0.5 |
YE/BK |
4219 |
I |
AS8 |
3rd Row Right Seat Recline Forward Signal |
5 |
0.5 |
YE/BK |
4219 |
II |
AS8 |
| 6 |
2.5 |
BK |
2050 |
I |
AS8 |
Ground |
6 |
2.5 |
BK |
2050 |
II |
AS8 |
