X305 Body Harness to Headliner Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

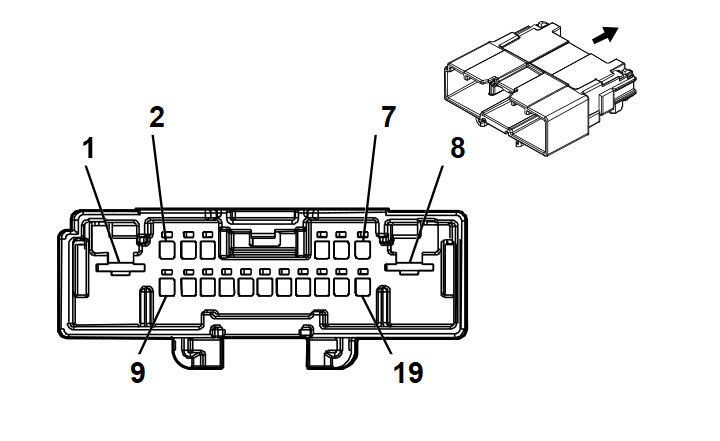

Connector Part Information
- Harness Type: Body
- OEM Connector: 13526847
- Service Connector: 13526847
- Description: 19-Way F 1.2, 6.3 Series (BK)
|

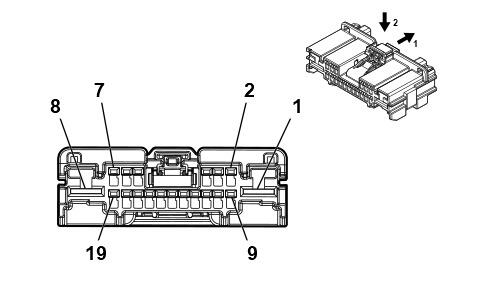

Connector Part Information
- Harness Type: Headliner
- OEM Connector: 13597288
- Service Connector: 13597288
- Description: 19-Way M 1.2, 6.3 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
13575833 |
J-35616-42 (RD) |
J-38125-11A |
| II |
84962854 |
J-35616-16 (LT GN) |
J-38125-215A |
| III |
19301536 |
J-35616-43 (RD) |
J-38125-11A |
| IV |
84616651 |
J-35616-17 (LT GN) |
J-38125-215A |
| V |
Not required |
J-35616-17 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
1 |
BK |
1350 |
I |
C3U |
Ground |
1 |
2 |
BK |
1350 |
III |
C3U |
| 2 |
0.35 |
RD/BN |
4940 |
II |
- |
Battery Positive Voltage |
2 |
0.35 |
RD/BN |
4940 |
V |
- |
| 3 |
0.35 |
GY |
157 |
II |
- |
Interior Lamp Control |
3 |
0.35 |
GY |
157 |
V |
- |
| 4 |
0.35 |
WH/BN |
6815 |
II |
- |
Inadvertent Load Control |
4 |
0.35 |
WH/BN |
6815 |
V |
- |
| 5 |
0.35 |
GY/BN |
3010 |
II |
- |
Active Noise Cancellation Microphone 3 Feedback Signal |
5 |
0.5 |
GY/BN |
3010 |
IV |
- |
| 6 |
0.35 |
GY/BU |
3007 |
II |
- |
Active Noise Cancellation Microphone 3 Signal |
6 |
0.5 |
GY/BU |
3007 |
IV |
- |
| 7 |
0.35 |
GN/BN |
6132 |
II |
C3U |
Body Control Module LIN Bus 1 |
7 |
0.35 |
GN/BN |
6132 |
V |
- |
| 8 |
1 |
RD/GY |
3540 |
I |
C3U |
Battery Positive Voltage |
8 |
2 |
RD/GY |
3540 |
III |
C3U |
| 9 |
0.35 |
RD/BU |
3940 |
II |
- |
Battery Positive Voltage |
9 |
0.35 |
RD/BU |
3940 |
V |
- |
| 10 |
0.35 |
BK/WH |
1351 |
II |
(UGN/UEU) |
Signal Ground |
10 |
0.35 |
BK/WH |
1351 |
V |
- |
| 11 |
- |
- |
- |
- |
- |
Not Occupied |
11 |
- |
- |
- |
- |
- |
| 12 |
0.35 |
WH |
3811 |
II |
UGN |
High Speed GMLAN Serial Data [-] 4 |
12 |
0.35 |
WH |
3811 |
V |
UEU+UGN |
| 13 |
0.35 |
BU/VT |
3813 |
II |
UGN |
High Speed GMLAN Serial Data [+] 4 |
13 |
0.35 |
BU/VT |
3813 |
V |
UEU+UGN |
| 14 |
- |
- |
- |
- |
- |
Not Occupied |
14 |
- |
- |
- |
- |
- |
| 15 |
0.35 |
WH |
2501 |
II |
- |
High Speed GMLAN Serial Data [-] 1 |
15 |
0.35 |
WH |
2501 |
V |
- |
| 16 |
0.35 |
BU |
2500 |
II |
- |
High Speed GMLAN Serial Data [+] 1 |
16 |
0.35 |
BU |
2500 |
V |
- |
| 17 |
- |
- |
- |
- |
- |
Not Occupied |
17 |
- |
- |
- |
- |
- |
| 18 |
0.35 |
WH/GN |
1776 |
II |
- |
Active Noise Cancellation Microphone 4 Low Reference |
18 |
0.5 |
WH/GN |
1776 |
IV |
- |
| 19 |
0.35 |
VT/BU |
1775 |
II |
- |
Active Noise Cancellation Microphone 4 Signal |
19 |
0.5 |
VT/BU |
1775 |
IV |
- |
