X212 Headliner Harness to Instrument Panel Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

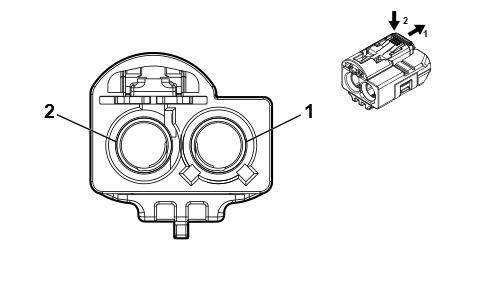

Connector Part Information
- Harness Type: Headliner Harness COAX
- OEM Connector: 13516236
- Service Connector: Service by Cable Assembly -
- Description: 2-Way F Coax Type (CU)
|

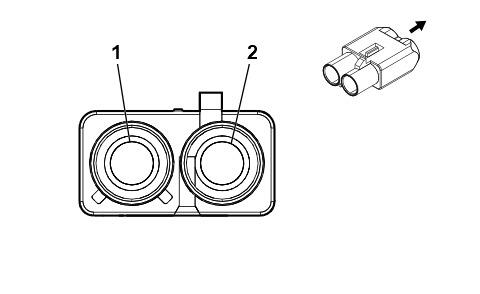

Connector Part Information
- Harness Type: Instrument Panel COAX
- OEM Connector: 13515678
- Service Connector: Service by Cable Assembly -
- Description: 2-Way M Coax Type (CU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
Coax Cable |
- |
I |
- |
(AM/FM) Antenna RF Signal |
- |
- |
Coax Cable |
- |
I |
- |
