X102 Forward Lamp Harness to Front Fascia Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

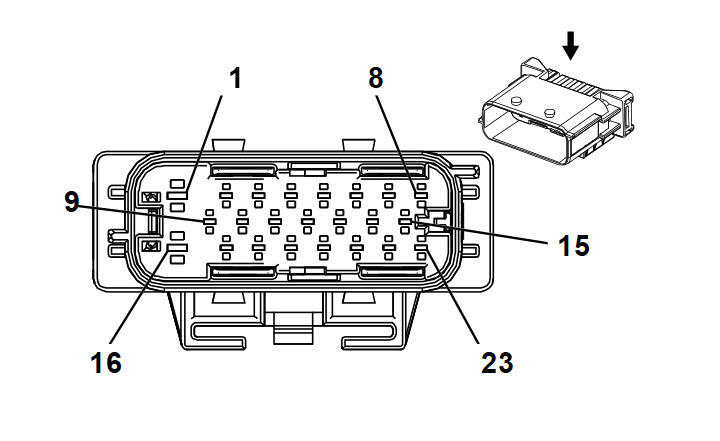

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13583381
- Service Connector: 19119627
- Description: 23-Way F 1.5 DSQ, 2.8 ATS Series, Sealed (GY)
|

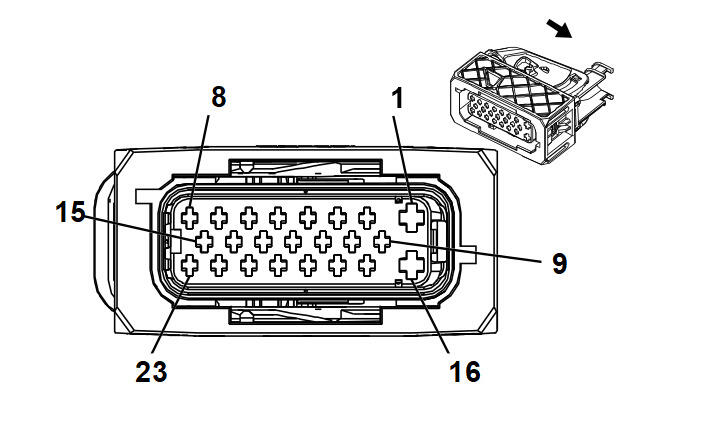

Connector Part Information
- Harness Type: Front Fascia
- OEM Connector: 13583379
- Service Connector: Service by Harness -
- Description: 23-Way M 1.5, 2.8 TTS Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19368143 |
J-35616-14 (GN) |
J-38125-560 |
| II |
Not required |
J-35616-3 (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 - 6 |
- |
- |
- |
- |
- |
Not Occupied |
1 - 6 |
- |
- |
- |
- |
- |
| 7 |
0.5 |
YE/VT |
5213 |
I |
UD5 |
Front Left/Right/Middle Parking Assist Sensor |
7 |
0.5 |
YE/VT |
5213 |
II |
UD5 |
| 8 |
0.5 |
VT/GY |
5218 |
I |
UD5 |
Right Front Middle Parking Assist Sensor |
8 |
0.5 |
VT/GY |
5218 |
II |
UD5 |
| 9 |
0.5 |
BK |
150 |
I |
|
Ground |
9 |
0.5 |
BK |
150 |
II |
|
| 10 |
0.5 |
BK |
250 |
I |
|
Ground |
10 |
0.5 |
BK |
250 |
II |
|
| 11 - 12 |
- |
- |
- |
- |
- |
Not Occupied |
11 - 12 |
- |
- |
- |
- |
- |
| 13 |
0.5 |
BK/BU |
61 |
I |
- |
Ambient Air Temperature Sensor Low Reference |
13 |
0.5 |
BK/BU |
61 |
II |
- |
| 14 |
0.5 |
VT/WH |
5215 |
I |
UD5 |
Left Front Outer Parking Assist Sensor |
14 |
0.5 |
VT/WH |
5215 |
II |
UD5 |
| 15 |
0.5 |
BK/BU |
5214 |
I |
UD5 |
Front Parking Assist Sensor Low Reference |
15 |
0.5 |
BK/BU |
5214 |
II |
UD5 |
| 16 |
- |
- |
- |
- |
- |
Not Occupied |
16 |
- |
- |
- |
- |
- |
| 17 |
0.5 |
VT/GY |
709 |
I |
|
Left Park Lamp Control |
17 |
0.5 |
VT/GY |
709 |
II |
|
| 18 |
0.5 |
GY/BN |
309 |
I |
|
Right Park Lamp Control |
18 |
0.5 |
GY/BN |
309 |
II |
|
| 19 - 20 |
- |
- |
- |
- |
- |
Not Occupied |
19 - 20 |
- |
- |
- |
- |
- |
| 21 |
0.5 |
BU/GY |
636 |
I |
- |
Ambient Air Temperature Sensor Signal |
21 |
0.5 |
BU/GY |
636 |
II |
- |
| 22 |
0.5 |
YE/GY |
5216 |
I |
UD5 |
Left Front Middle Parking Assist Sensor |
22 |
0.5 |
YE/GY |
5216 |
II |
UD5 |
| 23 |
0.5 |
WH/GY |
5217 |
I |
UD5 |
Right Front Outer Parking Assist Sensor |
23 |
0.5 |
WH/GY |
5217 |
II |
UD5 |
