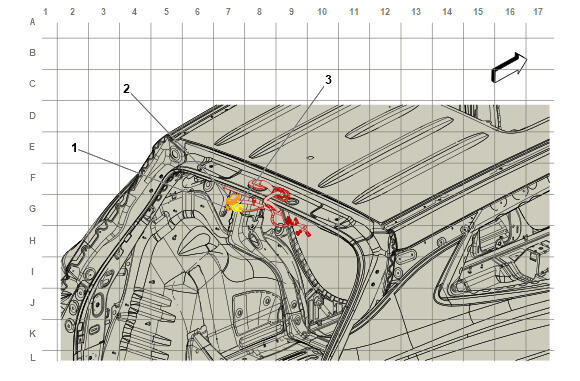

Body Harness Routing - Rear Top Center of Passenger Compartment

Courtesy of GENERAL MOTORS COMPANY

Items
1. X906 Body Harness to Liftgate Harness X906 Body Harness to Liftgate Harness (UV2) , or X906 Body Harness to Liftgate Harness (UVB)
2. X900 Body Harness to Liftgate Harness X900 Body Harness to Liftgate Harness
3. X908 Body Harness to Liftgate Harness (TB5 or TC2) X908 Body Harness to Liftgate Harness
