Ambient Air Temperature Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement

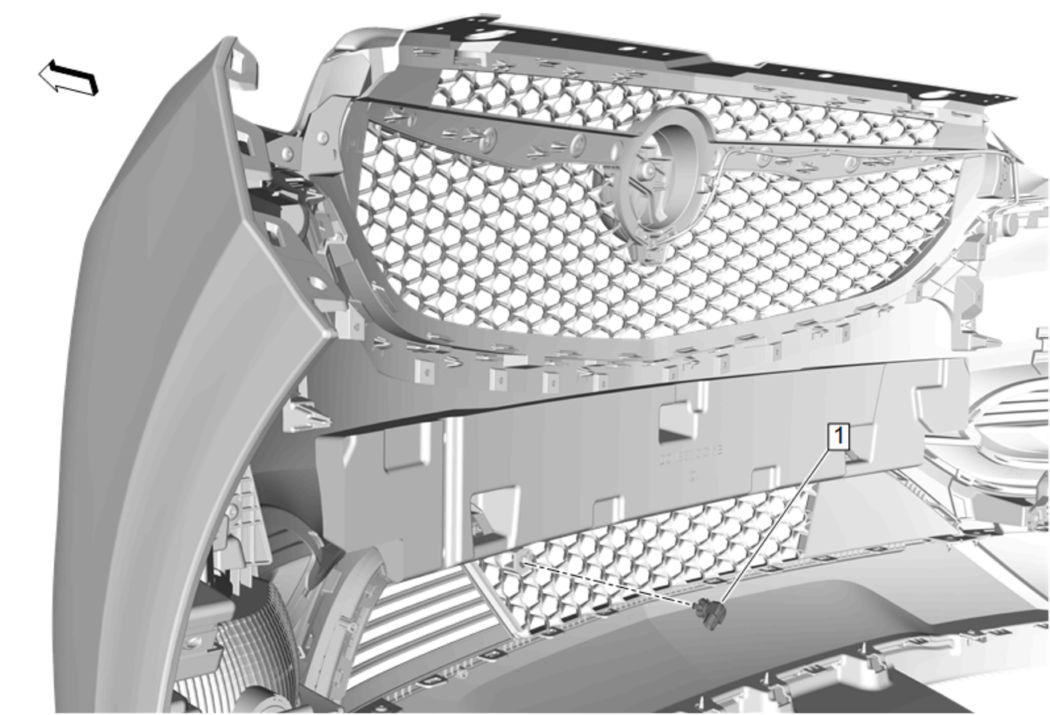

1	Ambient Air Temperature Sensor Procedures Squeeze the ambient air temperature sensor retaining tabs to remove from the front bumper fascia assembly. Disconnect the electrical connector.

Callout

Component Name

Ambient Air Temperature Sensor

Procedures

Squeeze the ambient air temperature sensor retaining tabs to remove from the front bumper fascia assembly.
Disconnect the electrical connector.
