Front Seat Belt Anchor Plate Tensioner Replacement

Courtesy of GENERAL MOTORS COMPANY

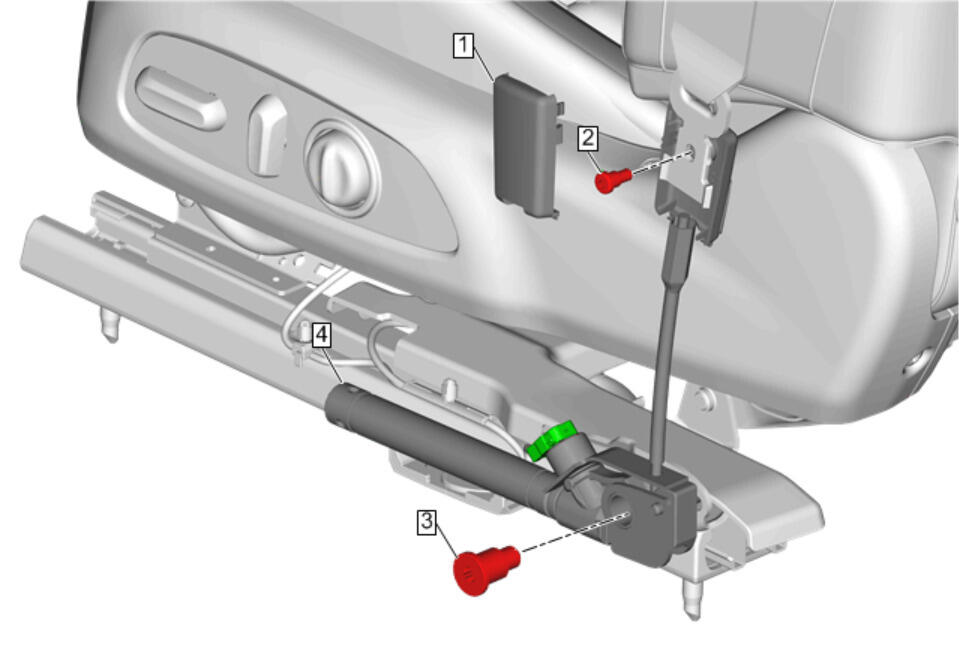

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Refer to SIR Inflator Module Handling and Storage Warning . Preliminary Procedures SIR Disabling and Enabling Front Seat Adjuster Finish Cover Replacement
1	Front Seat Belt Anchor Plate Tensioner Cover
2	Front Seat Belt Anchor Plate Tensioner Bolt CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb/in)
3	Front Seat Belt Tensioner Bolt Tighten 45 N.m (33 lb-ft)
4	Front Seat Belt Anchor Plate Tensioner Procedure Disconnect the electrical connector. Enable the SIR System. SIR Disabling and Enabling
