Passenger Door Trim Harness Routing

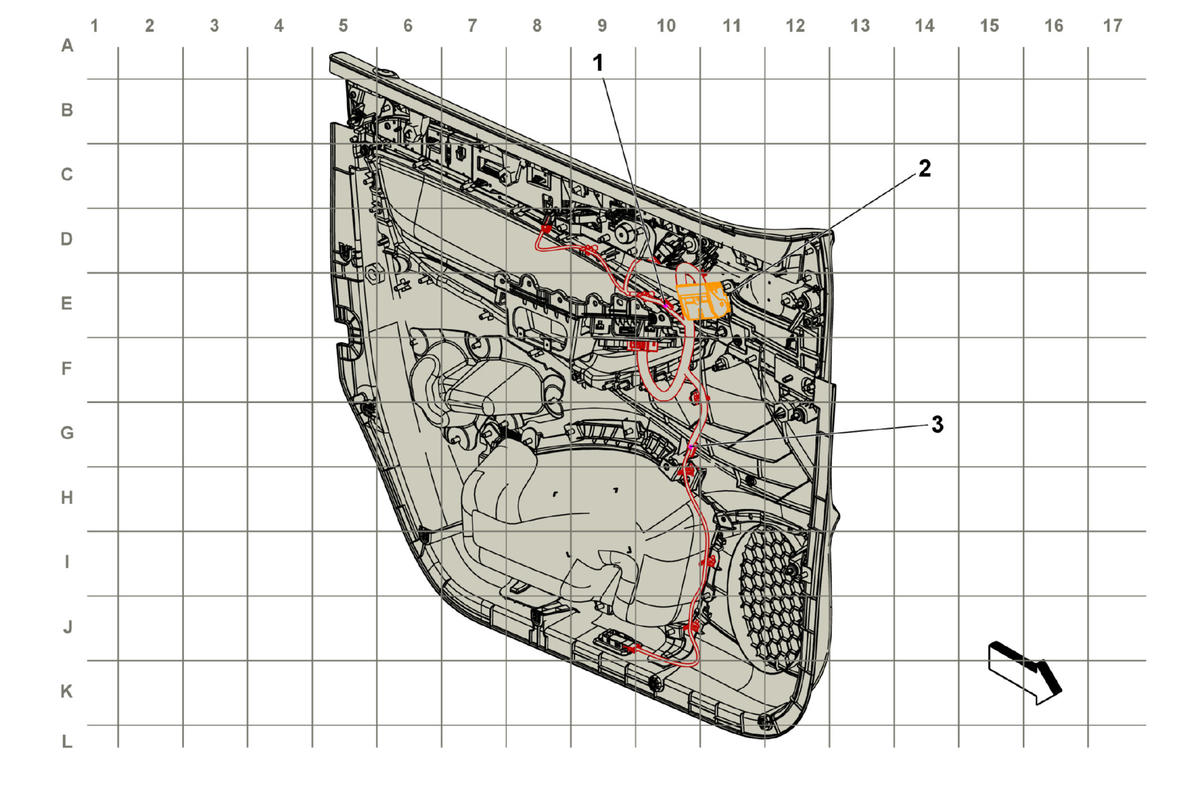

GM4742982Courtesy of GENERAL MOTORS COMPANY
Passenger Door Trim Harness Routing

Harness Name Callout
J602 Passenger Door Trim Harness 1
X605 Passenger Door Harness to Passenger Door Trim Harness X605 Passenger Door Harness to Passenger Door Trim Harness 2
J601 Passenger Door Trim Harness 3
