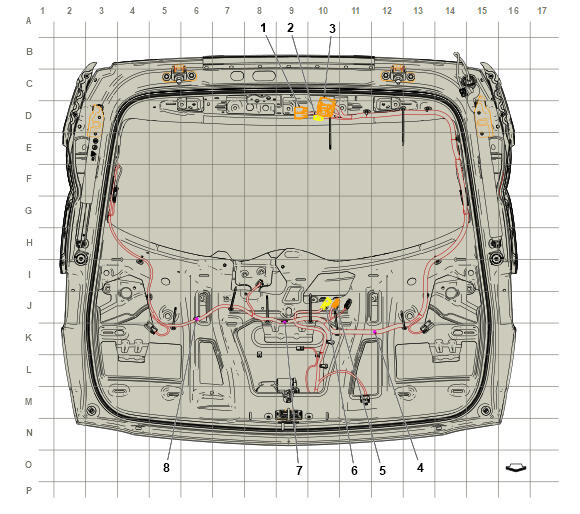

Liftgate Harness Routing
| Items |
|---|
| 1. X908 Body Harness to Liftgate Harness (TB5 or TC2) X908 Body Harness to Liftgate Harness |
| 2. X906 Body Harness to Liftgate Harness X906 Body Harness to Liftgate Harness (UV2) , or X906 Body Harness to Liftgate Harness (UVB) |
| 3. X900 Body Harness to Liftgate Harness X900 Body Harness to Liftgate Harness |
| 4. J900 Liftgate Harness |
| 5. X909 Liftgate Harness to License Lamp Harness (UVB or UV2): X909 Liftgate Harness to License Lamp Harness (UV2) , or X909 Liftgate Harness to License Lamp Harness (UVB) . |
| 6. X901 License Lamp Harness to Liftgate Harness (with or without DRZ): X901 License Lamp Harness to Liftgate Harness (-DRZ) , or X901 License Lamp Harness to Liftgate Harness (DRZ) . |
| 7. J905 Liftgate Harness (UVH) |
| 8. J901 Liftgate Harness |
