Instrument Panel Harness Routing
Instrument Panel Harness Routing

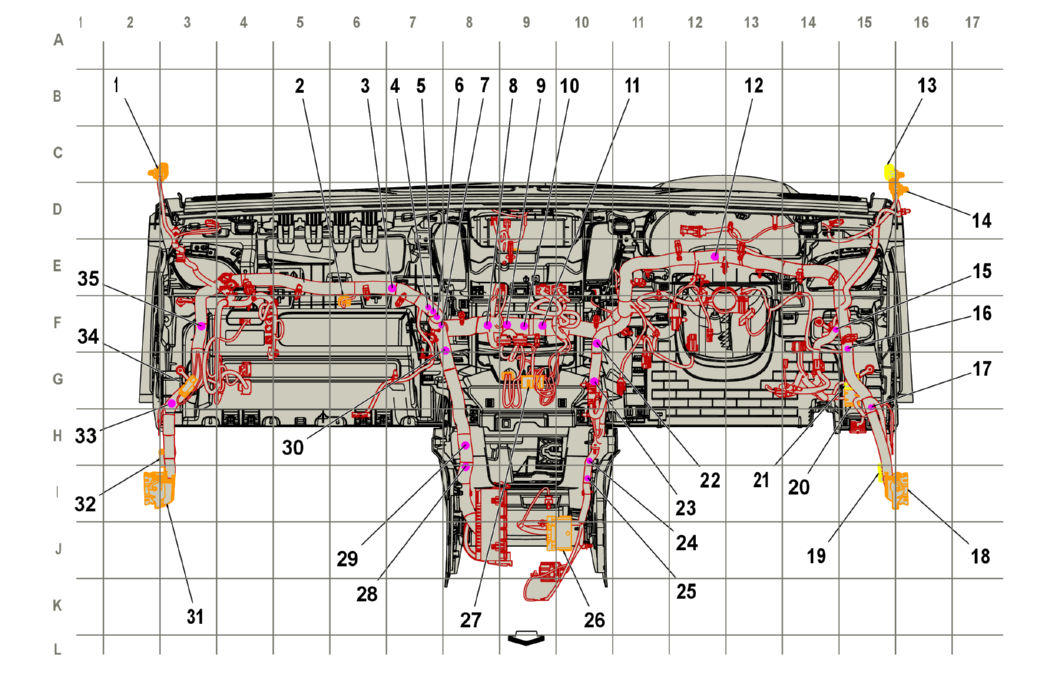

| Harness Name | Callout |
|---|---|
| X205 Headliner Harness to Instrument Panel Harness X205 Headliner Harness to Instrument Panel Harness | 1 |
| X207 Instrument Panel Harness to Passenger Instrument Panel Air Bag Harness X207 Instrument Panel Harness to Passenger Instrument Panel Air Bag Harness | 2 |
| J222 Instrument Panel Harness | 3 |
| J233 Instrument Panel Harness | 4 |
| J229 Instrument Panel Harness | 5 |
| J228 Instrument Panel Harness | 6 |
| J231 Instrument Panel Harness | 7 |
| J236 Instrument Panel Harness | 8 |
| J224 Instrument Panel Harness | 9 |
| J221 Instrument Panel Harness (CJ4) | 10 |
| J217 Instrument Panel Harness | 11 |
| X203 Headliner Harness to Instrument Panel Harness X203 Headliner Harness to Instrument Panel Harness | 12 |
| X204 Headliner Harness to Instrument Panel Harness X204 Headliner Harness to Instrument Panel Harness | 13 |
| J220 Instrument Panel Harness (KA1) | 14 |
| J219 Instrument Panel Harness | 15 |
| J245 Instrument Panel Harness | 16 |
| X200 Instrument Panel Harness to Body Harness X200 Instrument Panel Harness to Body Harness | 17 |
| X235 Instrument Panel Harness to Body Harness X235 Instrument Panel Harness to Body Harness | 18 |
| JX203 Instrument Panel Harness JX203 Splice Pack | 19 |
| JX201 Instrument Panel Harness JX201 Splice Pack | 20 |
| J234 Instrument Panel Harness | 21 |
| J237 Instrument Panel Harness | 22 |
| J227 Instrument Panel Harness | 23 |
| J230 Instrument Panel Harness | 24 |
| X234 Floor Console Harness to Instrument Panel Harness X234 Floor Console Harness to Instrument Panel Harness | 25 |
| X206 Instrument Panel Harness to HVAC Harness X206 Instrument Panel Harness to HVAC Harness | 26 |
| J244 Instrument Panel Harness | 27 |
| J238 Instrument Panel Harness | 28 |
| J215 Instrument Panel Harness | 29 |
| X201 Instrument Panel Harness to Body Harness X201 Instrument Panel Harness to Body Harness | 30 |
| J239 Instrument Panel Harness (CJ4) | 31 |
| J243 Instrument Panel Harness | 32 |
