Front Fascia Harness Routing

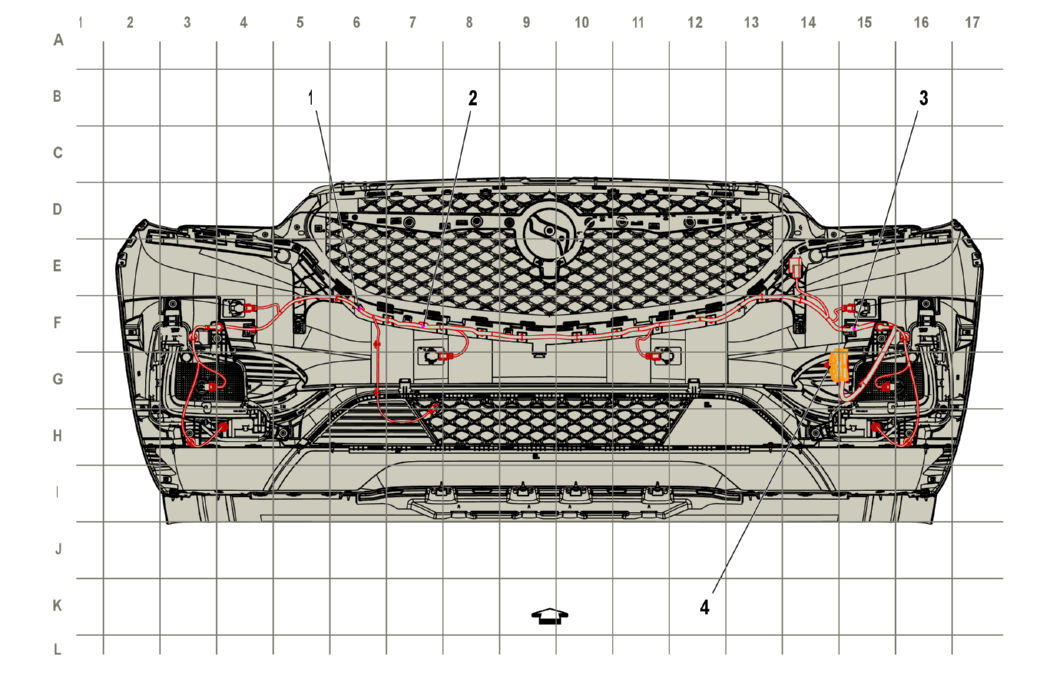

GM5778435Courtesy of GENERAL MOTORS COMPANY
Front Fascia Harness Routing

Harness Name Callout
J115 Front Fascia Harness 1
J113 Front Fascia Harness 2
X102 Forward Lamp Harness to Front Fascia Harness X102 Forward Lamp Harness to Front Fascia Harness 3
