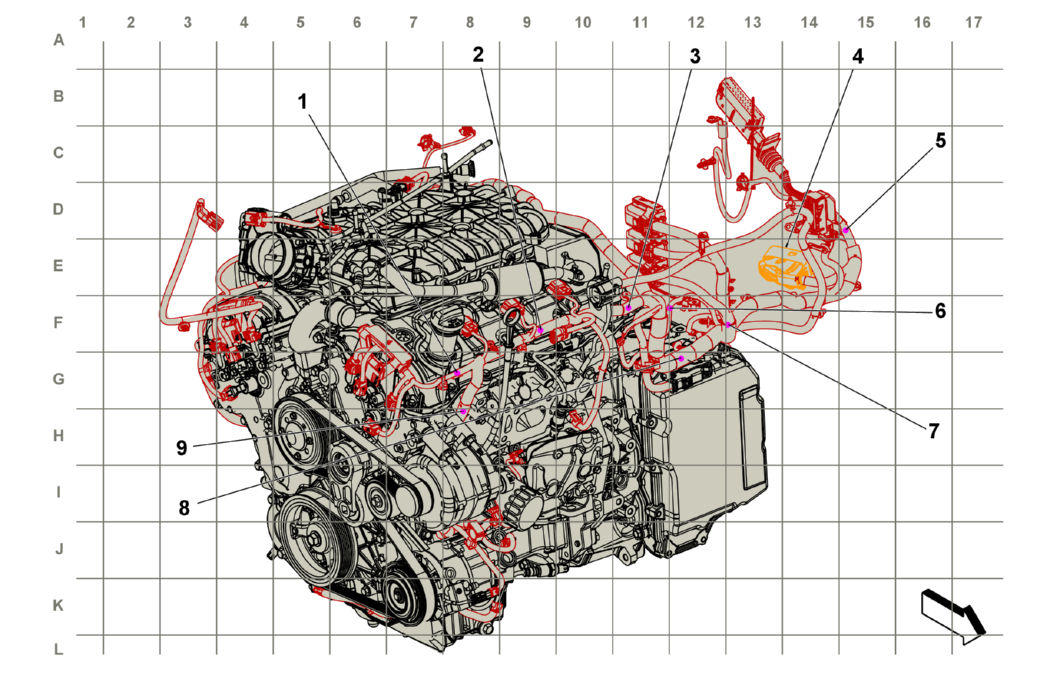

Engine Harness Routing - Right Front
Engine Harness Routing - Right Front
| Harness Name | Callout |
|---|---|
| J121 Engine Harness | 1 |
| J119 Engine Harness | 2 |
| J122 Engine Harness | 3 |
| X112 Engine Harness to Body Harness X112 Engine Harness to Body Harness | 4 |
| J147 Engine Harness | 5 |
| J108 Transmission Harness | 6 |
| J117 Engine Harness | 7 |
| J124 Engine Harness | 8 |
